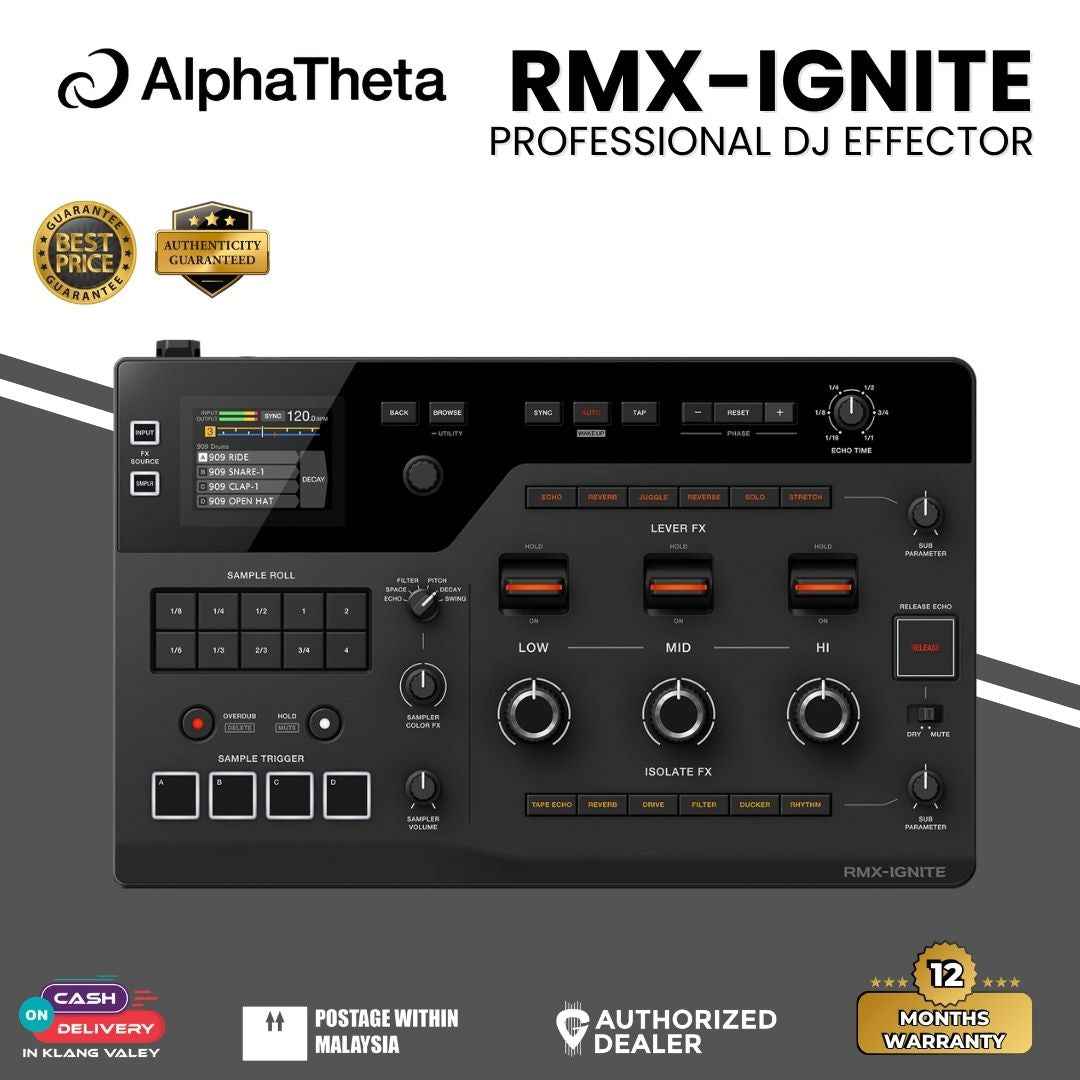

AlphaTheta RMX-IGNITE Professional DJ Effector

AlphaTheta DJM-V5 3-channel DJ Mixer

From above, the CDJ, DJM, and RMX-IGNITE form a clear, aligned layout.All the controls can be read at a glance, so you know exactly what to adjust –even before you start playing.Pads, knobs, and faders blend into 1 layout.With your CDJs, mixer, and other gear aligned,your setup becomes a single instrument at your fingertips.

The 3-Band FX section includes Lever FX and Isolate FX, and you can apply each to the high, mid, or low frequency bands.
Combining the 2 effect types opens diverse performance options and, with the sub-parameter knobs, you can refine the tone for richer, more expressive sounds.Quick setup means you can start playing right away. Simply connect a USB cable to your mixer’s MULTI I/O terminal. (DJM-A9 & DJM-V10 compatible)


specifications

• • Power Requirements: AC 100 V – 240 V, 50 Hz / 60 Hz
• • Power Consumption: DC 15 V, 3.0 A
• • Power Consumption (OFF): 0.3 W
• • Maximum External Dimensions (W × D × H): 340.0 × 213.3 × 72.8 mm / 13.4″ × 8.4″ × 2.9″
• • Main Unit Weight: 2.3 kg / 5.1 lbs
• • Operating Temperature: +5 °C – +35 °C
• • Operating Humidity: 5% – 85% (No Condensation)
• • Sampling Rate: 96 kHz
• • A/D, D/A Converter: 32-bit
• • Frequency Response: 20 Hz – 40 kHz
• • Signal-to-Noise Ratio (Rated Output, A-Weighted): CONNECTION Switch (MST) – 115 dB, CONNECTION Switch (SEND/RETURN) – 114 dB, CONNECTION Switch (CDJ) – 108 dB
• • Total Harmonic Distortion (20 Hz – 20 kHz BW): 0.0018%
• • Standard Input Level / Standard Output Level: CONNECTION Switch (MST) – +4 dBu / +4 dBu, CONNECTION Switch (SEND/RETURN) – -7.8 dBu / -7.8 dBu, CONNECTION Switch (CDJ) – -6 dBu / -12 dBu
• • Input Impedance: 47 kΩ
• • Output Impedance: 680 Ω or Less
• • Rated Output Level / Load Impedance: CONNECTION Switch (MST) – 21 dBu / 10 kΩ, CONNECTION Switch (SEND/RETURN) – 12 dBu / 10 kΩ, CONNECTION Switch (CDJ) – 3 dBu / 10 kΩ
• • Input: 1/4″ TS Jack ×1
• • Output: 1/4″ TS Jack ×1
• • USB Type-A (For Sampler): 1 Set (Power Supply: 5 V / 1 A or Less)
• • USB Type-C (For Multi I/O, AC Adapter): 2 Sets
