Alto LIVE 1604 16-Channel 4-Bus Mixer (LIVE1604/LIVE-1604) (PRE-ORDER)

Alto LIVE 1604 16-Channel 4-Bus Mixer (LIVE1604/LIVE-1604)

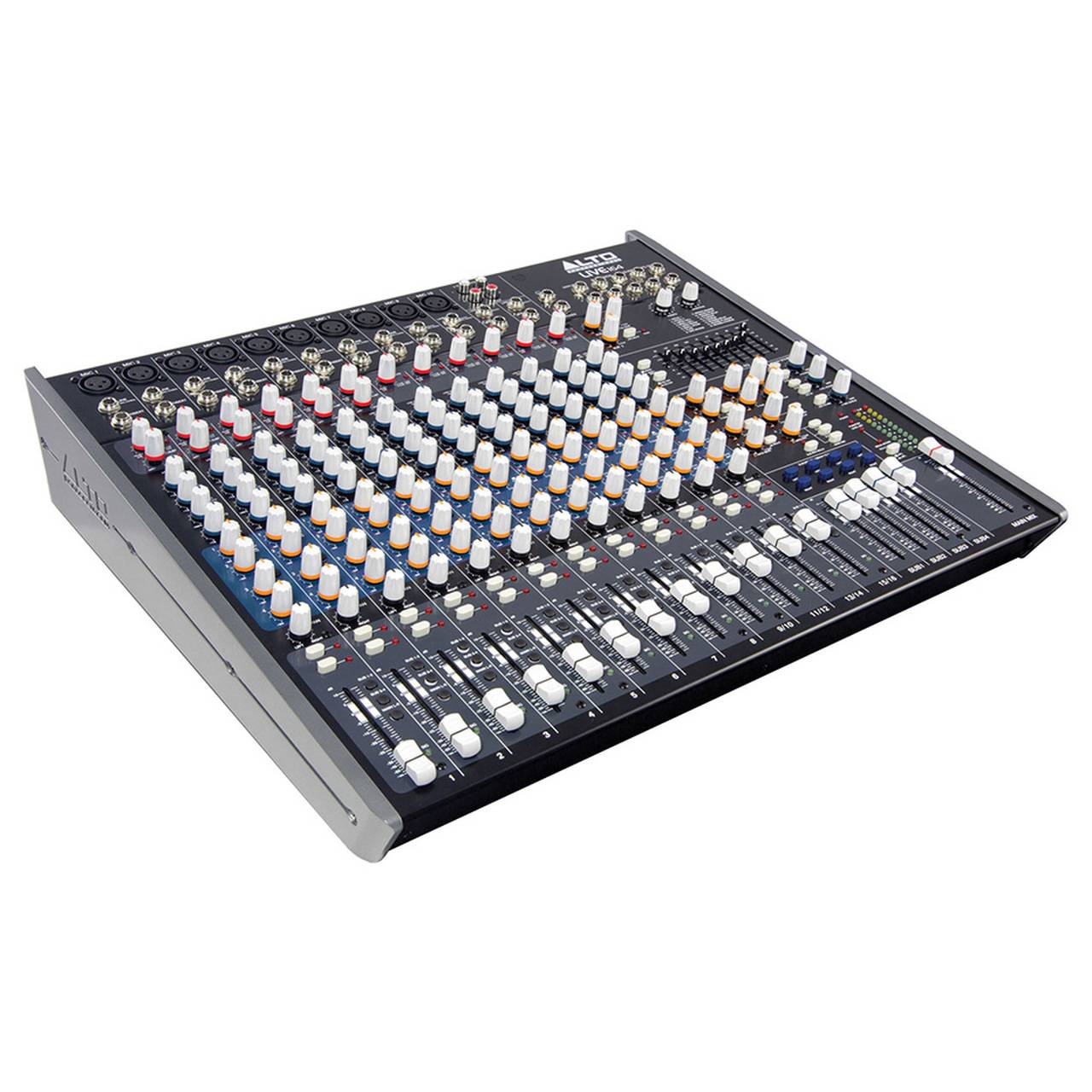

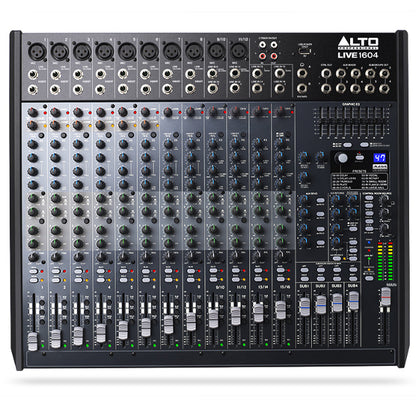

The Alto Live 1604 is a professional 16-channel mixer designed for live performances, recording, or events. It features 10 mic inputs with crystal-clear sound, built-in analog compression for smoother mixes, and a 3-band EQ with adjustable mid for tone control. Four AUX sends per channel make it easy to add effects or monitor mixes.

You can connect it to your computer via USB to record or playback audio, and it includes 100 built-in effects like reverb, delay, and chorus from Alesis. The mixer is easy to use in dark environments thanks to its color-coded knobs and bright LED indicators.

Perfect for bands, venues, and studios looking for high-quality sound with flexible control.

FEATURES

• 10 XLR inputs with DNA(TM) microphone preamps
• Dynamic compression (channels 1-6)
• 3-band EQ with sweepable mids
• 4 aux sends; pre/post switching on sends 1+2
• 60mm faders with mute and PFL/AFL solo functions
• 100 Alesis DSP effects
• USB audio connectivity with level control

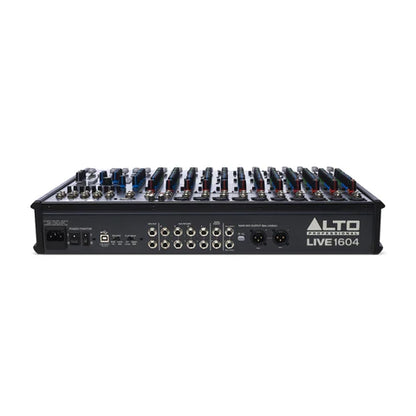

• Balanced XLR, balanced/unbalanced 1/4” outputs
• Headphone out with independent level control
• Switchable Phantom Power

SPECIFICATIONS

• Microphone Inputs : Electronically balanced, discrete input configuration
• Frequency Response : 20 Hz to 20 kHz, +0.5 dB
• THD+N
• Gain Range : 0 to 50 dB (Mic)
• SNR : 90 dB
• Line Inputs : Frequency Response: 20 Hz to 20 kHz, +0.5 dB
• THD+N: Sensitivity Range: -15 to 30 dBu
• Impedance : Microphone Inputs: 51.1 kOhms | Channel Insert Return: 200 kOhms | All Other Inputs: >100 kOhms | 2-Track Outputs: 10 kOhms | All Other Outputs: 20 kOhms
• Equalization : Mono Channels : | High-Shelving: ±15 dB @ 12 kHz | Mid-Bell (mono): ±15 dB sweep able from 100 Hz to 8 kHz | Low-Shelving: ±15 dB @ 80 Hz
• Stereo Channels: | High-Shelving: ±15 dB @ 12 kHz | High-Mid-Bell (mono): ±15 dB @ 3 kHz | Low-Mid-Bell (mono): ±15 dB @ 3 kHz | Low-Shelving: ±15 dB @ 500 Hz
• Main EQ : 9 EQ bands (63, 125, 250, 500 Hz, 1, 2, 4, 8, 16 kHz), ±15 dB
• DSP Section : A/D & D/A converters: 24-bit | DSP Resolution: 24-bit | Effects : 10 DSP effects families with 10 variations available per family | Presets: 100 total
• Controls: Rotary encoder to select preset, DSP mute switch, peak LED indicator
• Main Mix : Noise (Bus Noise): Fader 0 dB, channels muted: -84 dBr (ref: +4 dBu) | Fader 0 dB, all input channels assigned & set to unity gain: -73 dBr (ref: +4 dBu) | Phantom Power: Mic Pin2/Pin3 and Pin1 48 V ±2 V
• Power Supply : Main Voltage: USA/Canada: 100-120 VAC ~60 Hz | UK/Australia: 240 VAC ~50 Hz | Europe: 210-240 VAC ~50 Hz | Power Consumption: 35 W | Fuse: 1.25 A | Main Connection: Standard IEC receptacle
