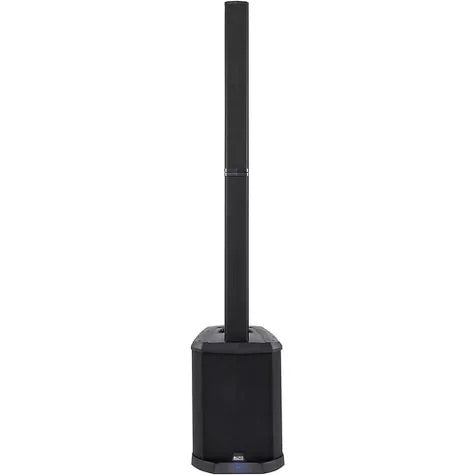

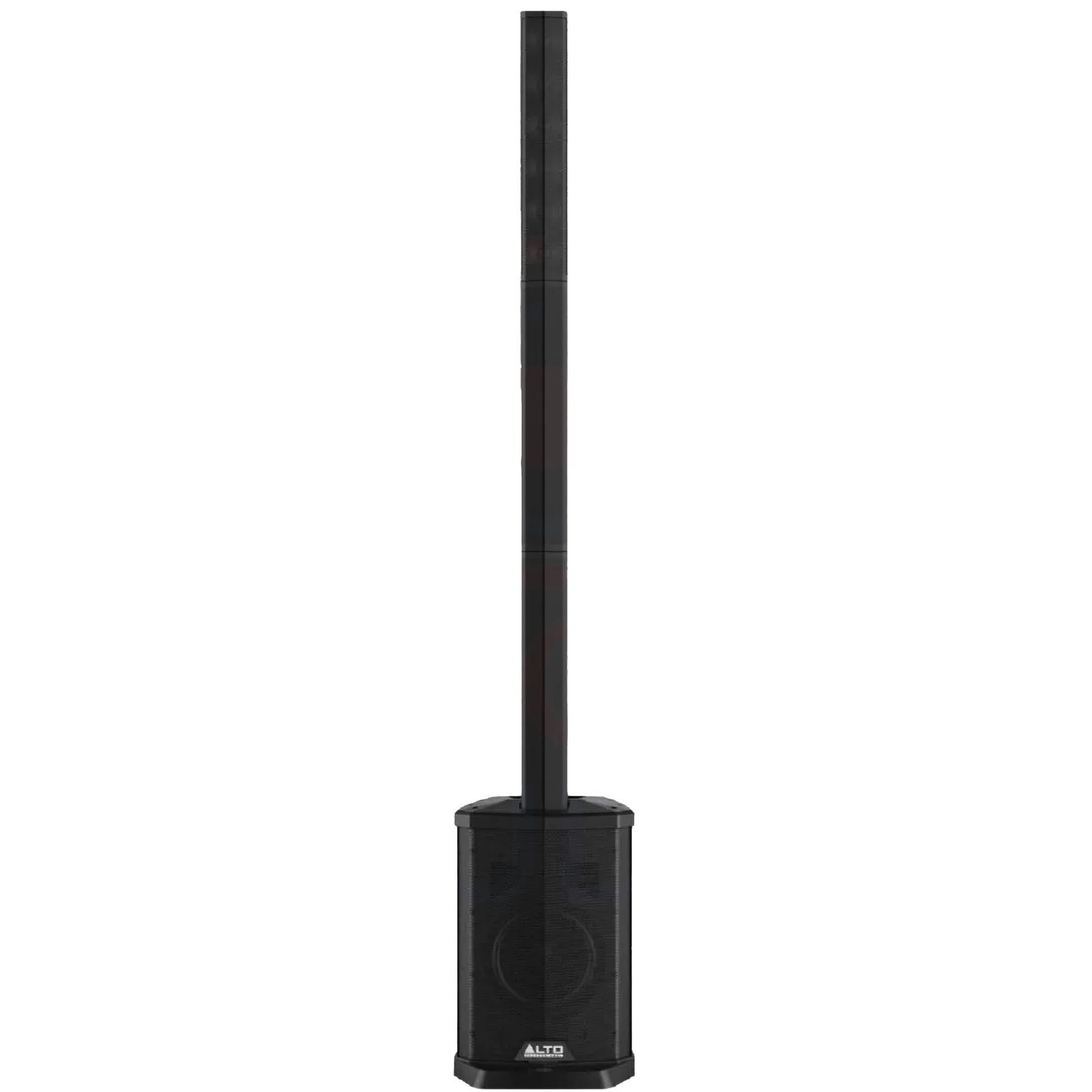

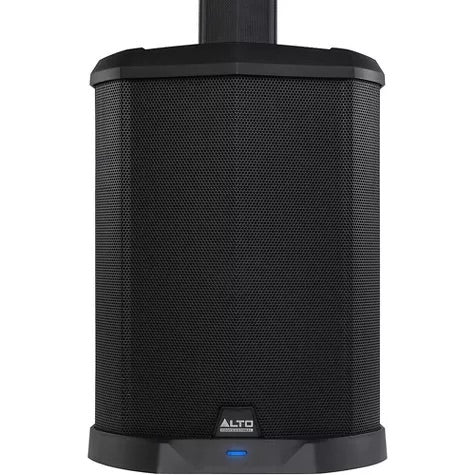

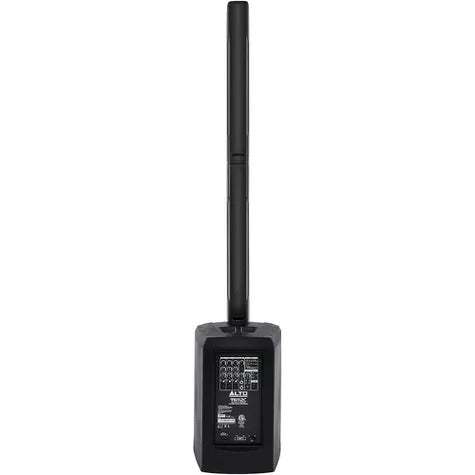

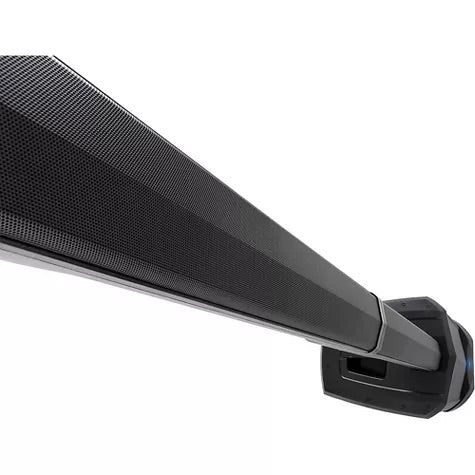

Alto TS112C Portable Colum Array Loudspeaker ( TS112C / TS -112C )

Alto TS112C Portable Colum Array Loudspeaker ( TS112C / TS -112C )

Alto TS112C Portable Colum Array Loudspeaker ( TS112C / TS -112C )

The Alto TS112 is a passive, 2‑way loudspeaker featuring a durable, lightweight polypropylene enclosure with a trapezoidal shape that reduces internal standing waves for improved sonic accuracy. It offers flexible deployment as a traditional upright speaker, floor-wedge monitor, pole- or stand-mounted unit, and can even be flown in permanent installations

Inside, it houses a 12″ low-frequency driver (with a 2″ voice coil) and a 1″ neodymium compression high‑frequency driver, all protected by a full-front perforated steel grille Dual electronic protection circuits safeguard the drivers, ensuring reliable performance under demanding use The speaker uses two parallel Speakon NL‑4 connectors for signal input and thru connection

SPECIFICATIONS

• Power Ratings:
• 200 W Continuous
• 400 W Program
• 800 W Peak
• Frequency Response:
• –10 dB: 52 Hz to 18 kHz
• Sensitivity:
• 96 dB SPL @ 1 W/1 m
• Maximum SPL:
• 119 dB continuous / 127 dB peak @ 1 m
• Coverage (HxV):
• Nominal 80° / 100° × 60°
• Crossover:
• Passive design at 2.2 kHz, 12 dB/octave with high-frequency driver protection
• Enclosure & Build:
• Injection-molded polypropylene with trapezoidal shape and integrated monitor angle
• Perforated steel grille for driver protection
• Mounting & Connectivity:
• Standard pole-mount, dual handles, eyebolt points for rigging
• Compact enclosure: ~648 × 383.8 × 365 mm (25.5″ × 15.0″ × 14.3″)
• Weight: ~25 lb (11.3 kg)
