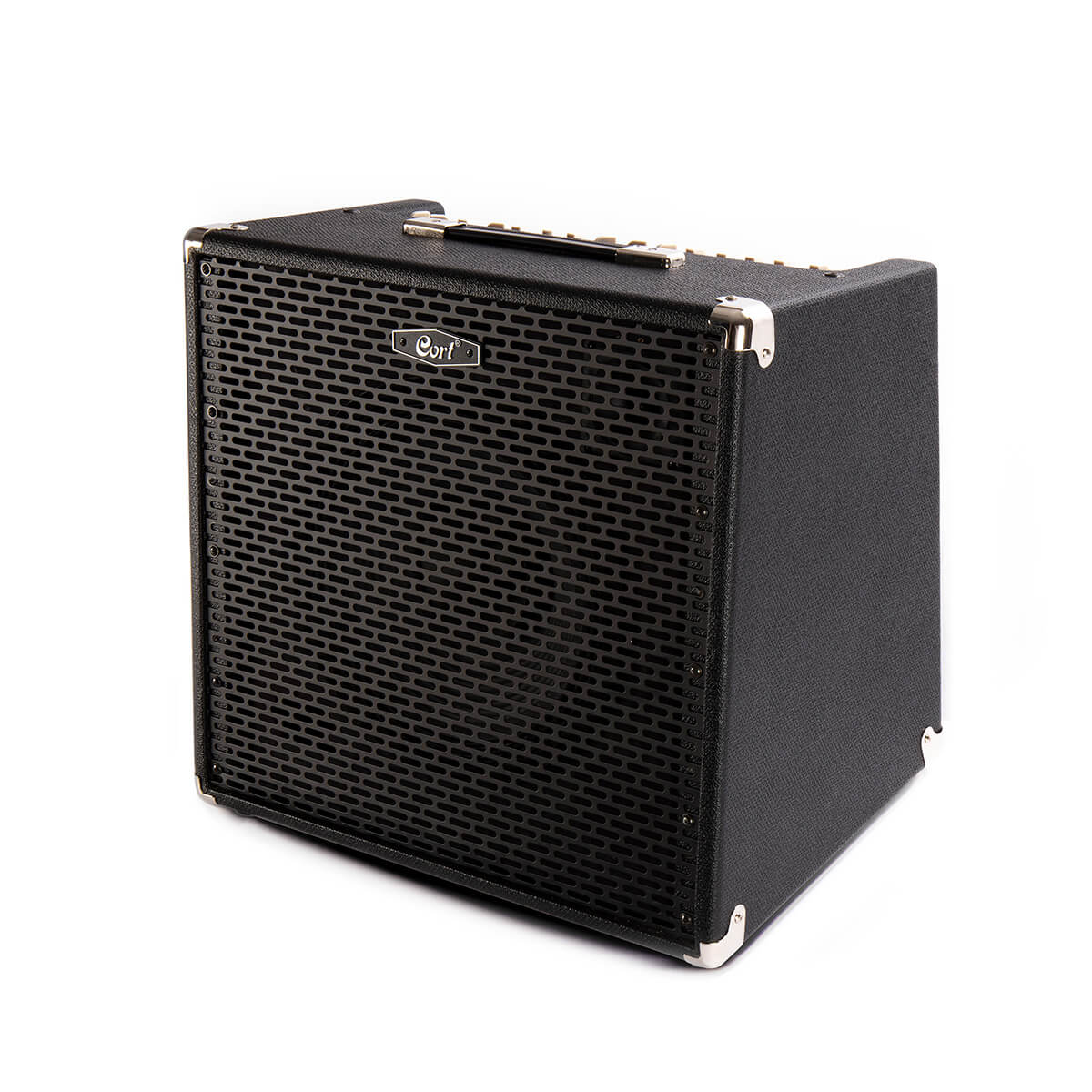

The MIX5 is a 150W multi-purpose combo amplifier that features 5 input channels, 4-band EQ and a built-in reverb that delivers great sound quality and flexibility in a rugged packaging that's perfect for small to medium sized venues and street performances. Vast array of instruments can be connected to MIX5 such as acoustic and electric guitars and basses, electronic drums and drum machines, microphones, keyboards and other sound sources, through variety of input options located on the top-back side of the MIX5 for easier use. And no matter what or how many instruments you plug in, the MIX5's solid internal design and robust external structure, together with custom-designed 12" speaker and tweeter lets out an optimal sound with clear fidelity.
FEATURES
- 150W Multi-Purpose Amplifier
- The MIX5 is a 150W multi-purpose combo amplifier that features 5 input channels, 4-band EQ and a built-in reverb that delivers great sound quality and flexibility in a rugged packaging that's perfect for small to medium sized venues and street performances.
- 12″ Speaker & 3″ Tweeter
- Custom-designed 12" speaker and tweeter lets out an optimal sound with clear fidelity.
- Rugged Packaging
- No matter what or how many instruments you plug in, the MIX5's solid internal design and robust external structure gives stability.

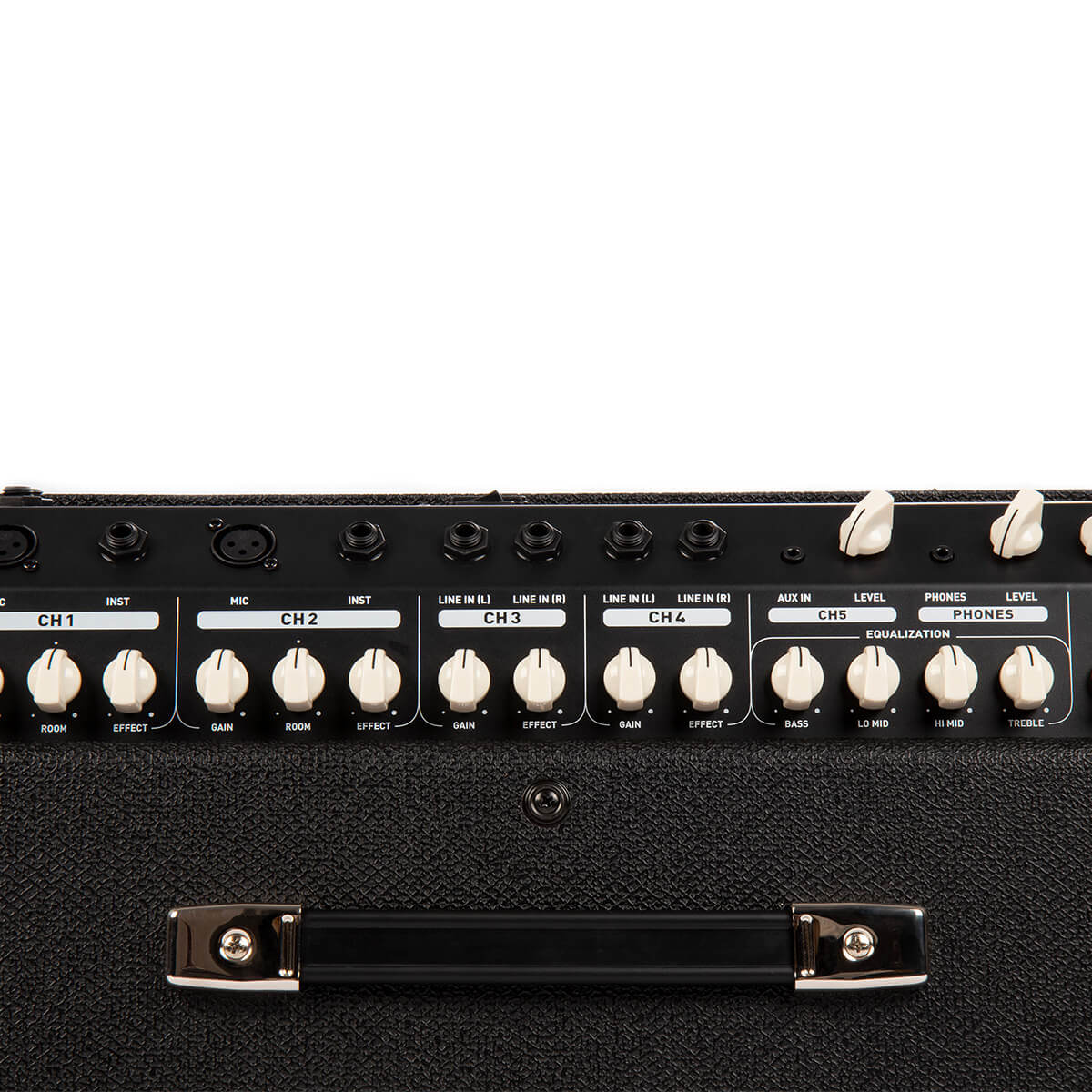

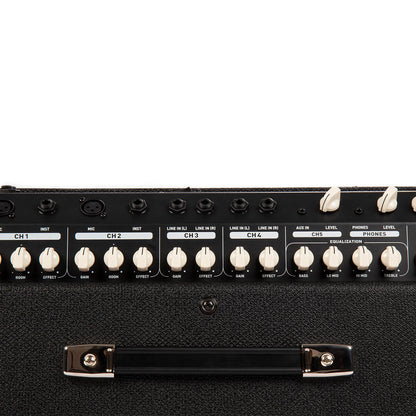

- 4 Band EQ & Gain Control
- Each Channel is equipped with individual GAIN control, with master volume and 4-band EQ that controls the overall output mix.
- Reverb Control
- Channels 1-4 also has a dedicated EFFECT control for adjusting reverb levels independently, while the master REVERB control adjusts the overall effects level.
- Room Control
- Included exclusively for Channels 1 and 2 are the special ROOM control which are designed to emphasize high or low frequencies depending on the direction the knob is turned for a balanced EQ control.

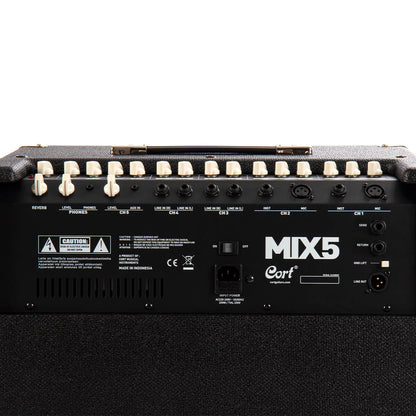

- Rear Pannel
- The MIX5 is also comes with various output options such as SEND / RETURN, and a dedicated LINE OUT option with XLR output for linking to another amplifier or a PA.
- Phones
- PHONES connection with LEVEL control allows headphones for silent use or performance monitoring.
SPECIFICATIONS
- INPUT VOLTAGE
- Varies Depending on the Region
- POWER REQUIREMENTS
- 200W
- POWER OUTAGE
- 150W
- SPEAKER
- 12″ 8Ω Speaker / 3″ Tweeter
- DIMENSIONS
- 500㎜ * 350㎜ * 460㎜
- WEIGHT
- 18㎏
- SPECIAL FEATURES
- CONTROLS
- Channel 1 & 2: Gain, Room, Effect
- Channel 3 & 4: Gain, Effect
- Channel 5: Level
- Phones: Level
- Equalization: Bass, Lo Mid, Hi Mid, Treble
- Master Reverb Level
- Master Level
- INPUT / OUTPUT
- Front:
- Channel 1 & 2: XLR, Unbalanced Line In
- Channel 3 & 4: Stereo Unbalanced Line In
- Channel 5: 3.5mm AUX In
- 3.5mm Phone Out
- Back:
- Balanced Line Out w/ Ground Lift Button
- FX Loop (Send / Return)
