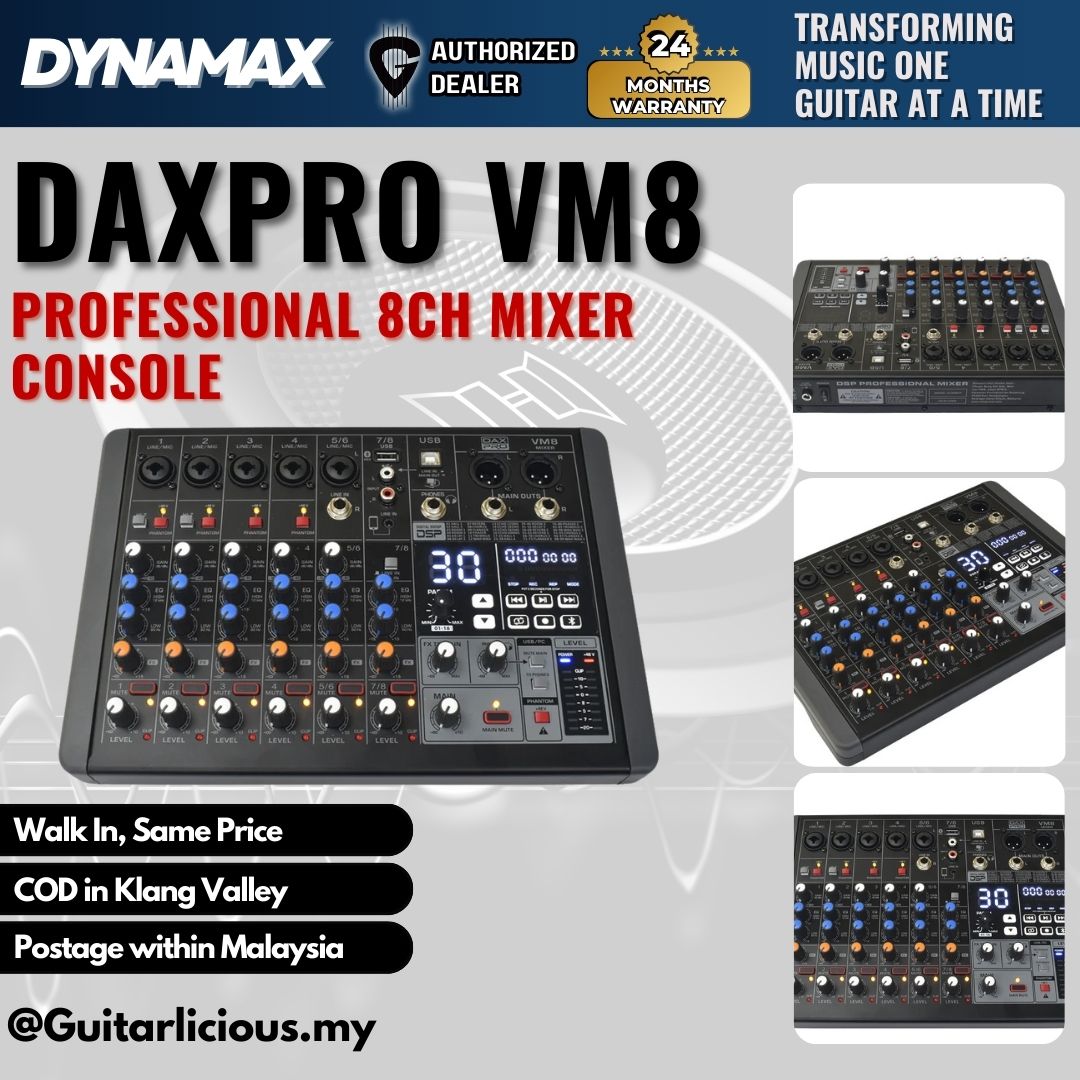

DYNAMAX DAXPRO VM8 Professional 8CH Mixer Console

DYNAMAX DAXPRO VM8 Professional 8CH Mixer Console

The DYNAMAX DAXPRO VM8 Professional 8CH Mixer Console is an 8-channel, 5-mic/2-stereo channel mixing console designed for live setups, content creation, and studio work. It features integrated USB audio recording, Bluetooth streaming, and built-in digital effects.

FEATURES


• Channels: 8 total channels, with 5 mono channels and 2 stereo channels, each having individual EQ, FX, mute, gain, and volume controls.
• Preamps & Phantom Power: Equipped with 5 microphone preamps that offer selectable +48V phantom power for condenser microphones.
• Effects: Includes 99 built-in 32-bit DSP (Digital Signal Processor) effects.
• 99 built-in DSP effects
• Integrated USB audio interface (16-bit / 44.1 kHz recording)
• Bluetooth streaming, USB MP3 playback, and stereo/USB switch control
• LED level meters, balanced XLR outputs, and ¼” TS jacks
• For live setups, content creators, and studio work alike
• Mic E.I.N. (20 Hz - 20 kHz): XLR, balance, Discrete input circuit
• @ 0 Ω source resistance: - 134 dB / 135.7 dB A-weighted
• @ 50 Ω source resistance: - 131 dB / 133.3 dB A-weighted
• @ 150 Ω source resistance: - 129 dB / 131.5 dB A-weighted
• Mic Gain: +10 dB to +60 dB
• Mic Frequency Response: < 10 Hz - 150 kHz (-1 dB) / < 10 Hz - 200 kHz (-3 dB)
• Mic Impedance: approx. 2.6 kΩ balanced
• Signal to Noise Ratio: 110 dB / 112 dBA (0 dBu In @ +22 dB Gain)
• Distortion (THD + Noise): 0.005% / 0.004% A-weighted
• Type: 6.3 mm stereo channel, unbalanced
• Impedance: approx. 10 kΩ - 20 kΩ unbalanced
• Gain Range: +10 dB to -40 dB
• Maximum Input Level: +22 dBu @ 0 dB gain
• Phantom Power: Selectable on each channel
• Stereo Line Inputs: 6.3 mm stereo channels, unbalanced l Approx. 10 Ω (Impedance) l +22 dBu (Max vol)
• Balanced Mono & Stereo Channel: 80 Hz / ±15 dB (Low) l 12 kHz / ±15 dB (High)
• Aux Send (Auxiliary Output): 6.3 mm mono, unbalanced l Approx. 120 Ω (Impedance) l +22 dBu (Max vol)
• Sub Grouping Output: 6.3 mm mono, unbalanced l Approx. 120 Ω (Impedance) l +22 dBu (Max vol)
• Main Output: XLR balanced 6.3 mm stereo, balanced l Approx. 240 Ω / 120 Ω (Impedance)
• DSP: 32-bit digital to analog converter / Scan Speed : 40 kHz
• Power Supply: 100 - 240 V AC, 50 - 60 Hz
• Product / Box Dimension (W x D x H): 300 x 210 x 55 mm / 340 x 280 x 110 mm
• Net / Gross Weight: 11.4 kg / 14.8 kg
