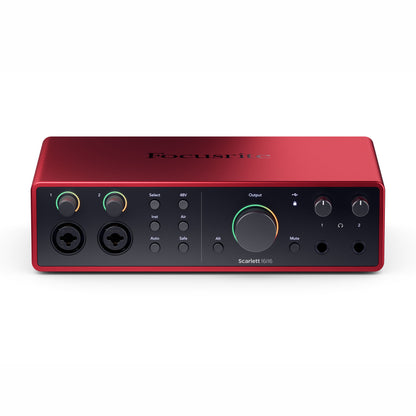

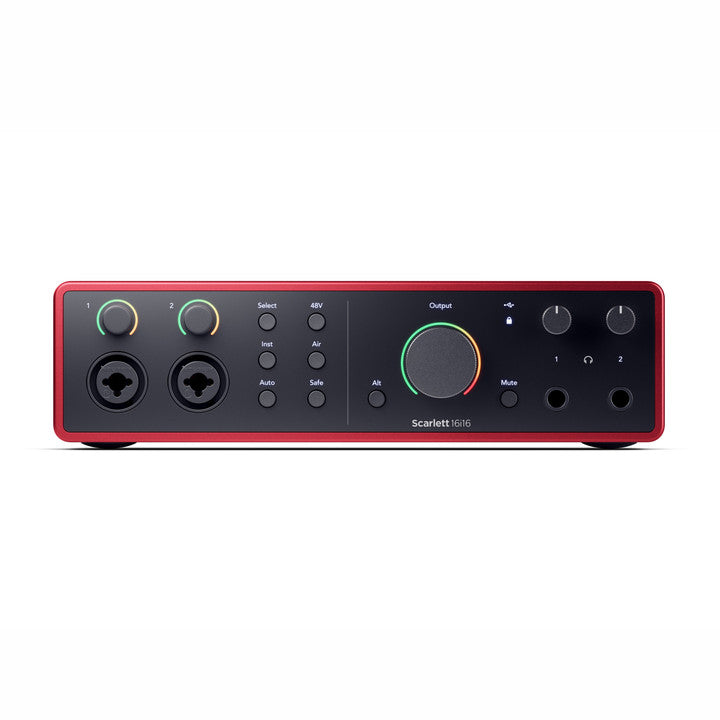

Focusrite Scarlett 16i16 (4th Generation) USB Audio Interface

Focusrite Scarlett 16i16 (4th Generation) USB Audio Interface

16i16 is the compact, portable studio hub for artists and producers. Whether you're on the go, hopping from sessions, or recording at home, you'll always have access to two of our finest preamps, plus instrument, line, and MIDI connections for whatever the project throws your way: guitars, keys, synths, grooveboxes, and controllers. And if you're looking to expand your channel count, it's easily done with S/PDIF and ADAT.


Key Features

• Two ultra-low-noise mic/line/instrument preamps
• Four additional line inputs
• Two Air preamp modes for classic console sound
• Clip Safe and Auto Gain modes
• Alt speaker switching

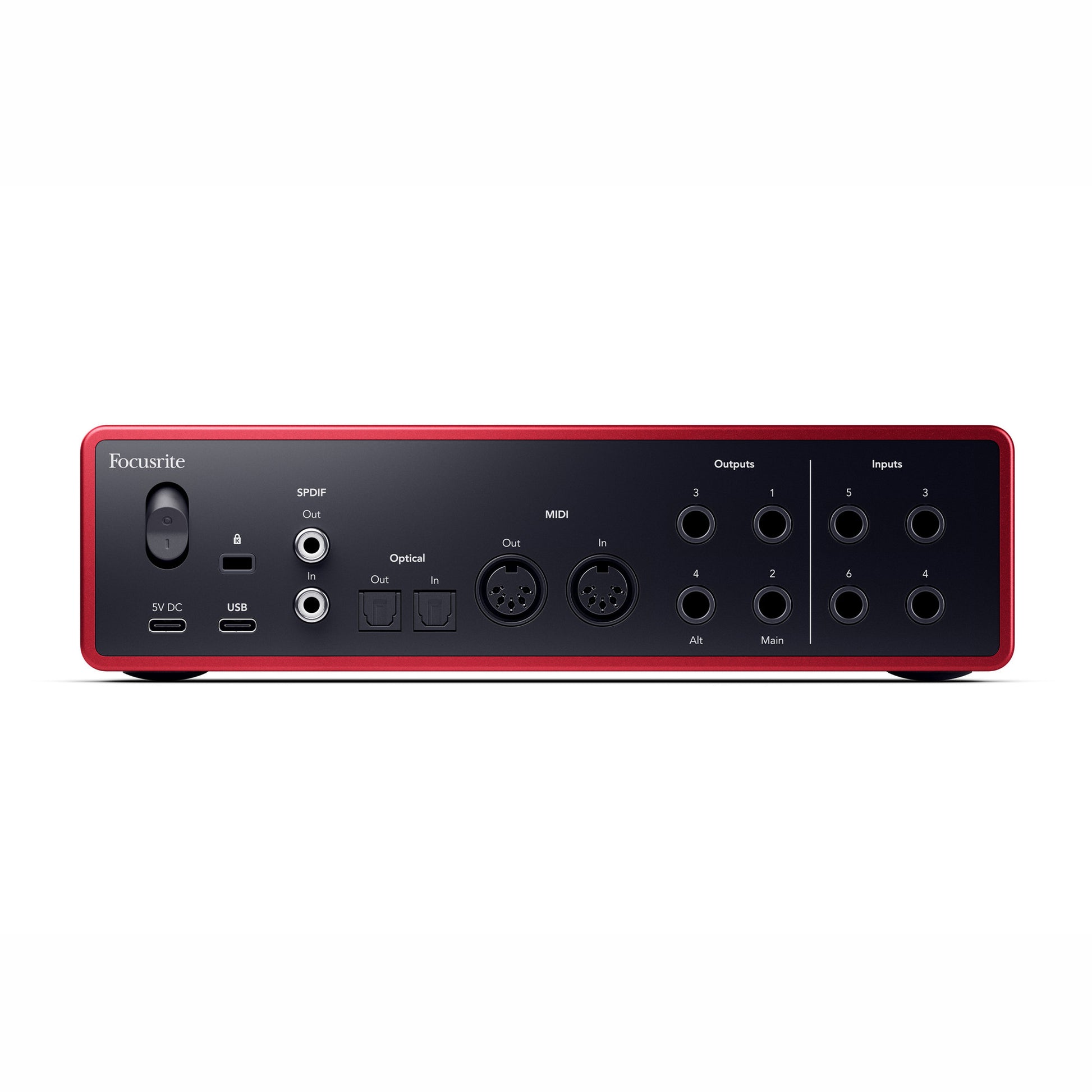

• MIDI, S/PDIF, and ADAT connectivity
• Includes Hitmaker Expansion and DAW software bundle

Specifications

• Microphone Preamps: 2
• Phantom Power: Yes (independently switchable)
• Instrument Inputs: 2
• Line Inputs: 6
• Line Outputs: 4
• Headphone Outputs: 2
• ADAT Inputs: 1
• ADAT Outputs: 1
• SPDIF Inputs: 1
• SPDIF Outputs: 1
• MIDI Inputs: 1
• MIDI Outputs: 1
• Loopback Functionality: Supported
• Air Mode: Supported
• Auto Gain Control: Supported
• Clip Safe Technology: Supported
• Connectivity Interface: USB Type-C
• USB Protocol: USB 2.0
• Form Factor: Desktop
• Simultaneous I/O Channels: 18 in / 18 out (including Loopback)
• A/D Conversion Resolution: 24-bit / 192 kHz
• Bus Power Requirement: Yes (3A via USB)
• Height: 60.5 mm
• Width: 220 mm
• Depth: 155.2 mm
• Weight: 1.25 kg
• Supported Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
• Microphone Input Frequency Response: 20 Hz – 20 kHz ± 0.06 dB
• Microphone Input Dynamic Range: 116 dB (A-weighted)
• Microphone Input THD+N: –100 dB at 8 dB gain
• Microphone Input EIN: –127 dBu (A-weighted)
• Microphone Maximum Input Level: 16 dBu
• Microphone Gain Range: 69 dB
• Microphone Input Impedance: 3 kΩ
• Variable Line Input Frequency Response: 20 Hz – 20 kHz ± 0.05 dB
• Variable Line Input Dynamic Range: 115.5 dB (A-weighted)
• Variable Line Input THD+N: –100 dB at 8 dB gain
• Variable Line Maximum Input Level: 22 dBu
• Variable Line Gain Range: 69 dB
• Variable Line Input Impedance: 24 kΩ
• Fixed Line Input Frequency Response: 20 Hz – 20 kHz ± 0.02 dB
• Fixed Line Input Dynamic Range: 115.5 dB (A-weighted)
• Fixed Line Input THD+N: –106 dB
• Fixed Line Maximum Input Level: 22 dBu
• Fixed Line Input Impedance: 48 kΩ
• Instrument Input Frequency Response: 20 Hz – 20 kHz ± 0.05 dB
• Instrument Input Dynamic Range: 113 dB (A-weighted)
• Instrument Input THD+N: –80 dB at 8 dB gain
• Instrument Maximum Input Level: 12 dBu
• Instrument Gain Range: 62 dB
• Instrument Input Impedance: 1 MΩ
• Line Output Frequency Response (Balanced): 20 Hz – 20 kHz ± 0.02 dB
• Line Output Dynamic Range: 122 dB (A-weighted)
• Line Output THD+N: –112 dB
• Line Output Maximum Output Level: 16 dBu
• Line Output Impedance: 200 Ω
• Headphone Output Frequency Response: 20 Hz – 20 kHz ± 0.1 dB (at 33 Ω / 300 Ω)
• Headphone Output Dynamic Range: 112 dB at 33 Ω, 116 dB at 300 Ω
• Headphone Output THD+N: –100 dB (min) at 33 Ω, –110 dB (min) at 300 Ω
• Headphone Output Maximum Level: 5 dBu into 33 Ω, 11 dBu into 300 Ω
• Headphone Output Maximum Power: 57 mW into 33 Ω, 27 mW into 300 Ω
• Headphone Output Impedance: 11 Ω
• ADC THD+N: –110 dB
• ADC Dynamic Range: 120 dB
• DAC THD+N: –115 dB
• DAC Dynamic Range: 130 dB (A-weighted)
• Power via USB: 3A
• External Power (Optional): 15 W
