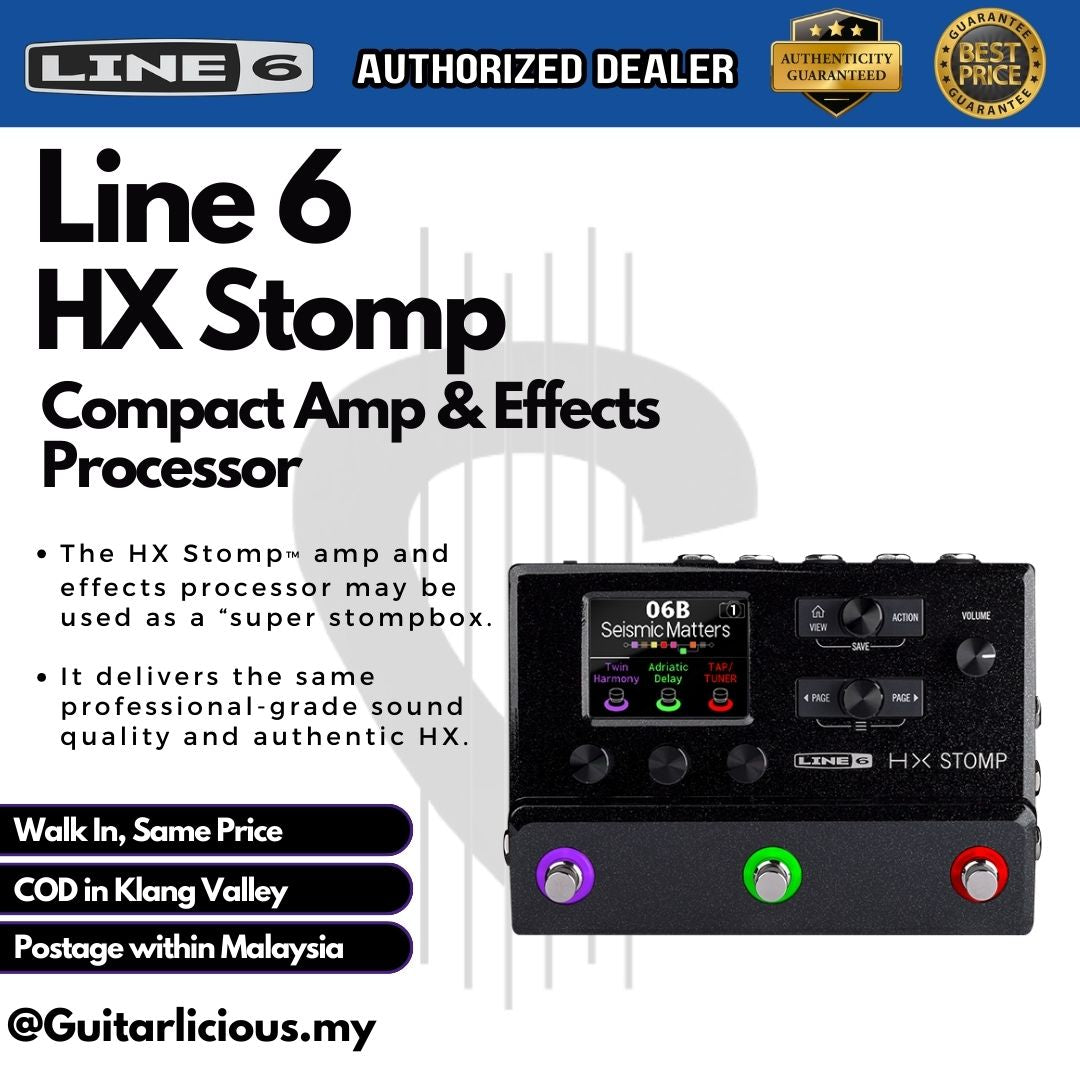

Line 6 HX Stomp Guitar Multi-effects Floor Processor

Line 6 HX Stomp Guitar Multi-effects Floor Processor

Line 6 HX Stomp Guitar Multi-effects Floor Processor

The HX Stomp™ amp and effects processor may be used as a “super stompbox,” a backup or travel rig, an add-on tone expander with other modelers, an audio interface—or a complete guitar or bass rig. Although compact in size, it delivers the same professional-grade sound quality and authentic HX® Modeling found in our market-leading Helix® processors..

FEATURES

• The processing power of the Helix family in a compact 3-switch stomp
• The ultimate standalone travel rig, or a balanced part of any pedalboard/amp setup
• 7" x 5" x 2.5" aluminum chassis — slightly larger than a paperback novel
• 300+ onboard amp, cab, and stomp models from the Helix family, M-series, and legacy Line 6 products
• 126 presets to cover real-world gigging applications
• Choose up to 6 blocks per preset
• 24/96 HX audio engine delivers pristine quality and realistic modeling
• Brilliant 2.4" full-color display
• FX loop for front- or back-loading stomp effects
• Preconfigured 4-cable amp integration
• True stereo performance from input to output
• MIDI capability for traditional switchers and advanced performance integration
• Doubles as a USB audio interface with re-amp capabilities
• True bypass switching eliminates tone suck on your pedalboard
• Convenient computer-based patch management and firmware upgrades

SPECIFICATIONS

• • PEDAL TYPE: Multi-FX with USB Interface
• • ANALOG/DIGITAL: Digital
• • PRESETS: 126 (42 Banks x 3 Presets), 3 Snapshots per Preset
• • NUMBER OF EFFECTS: Over 300 (Effects & Modeling Combined)
• • EFFECT TYPES: 123 Helix, 77 Legacy, Up to 6 Simultaneous FX
• • AMP MODELING: 77 Amps, 37 Cabinets, Impulse Response Support
• • LOOPER: 60 Seconds (Mono), 30 Seconds (Stereo)
• • INPUTS: 2 x 1/4" (L/Mono, R), 2 x 1/4" (L/R, Aux In)
• • OUTPUTS: 2 x 1/4" (L/Mono, R), 1 x 1/4" (Stereo Send)
• • MIDI I/O: In, Out/Thru
• • USB: 1 x Type-B (8 In x 6 Out Audio Interface)
• • HEADPHONES: 1 x 1/4"
• • OTHER I/O: 1 x 1/4" TRS (Expression/Footswitch)
• • TRUE BYPASS: Yes
• • BYPASS SWITCHING: DSP Bypass (Switchable)
• • FEATURES: 24-bit / 192kHz Converters, SHARC DSP Processor
• • SOFTWARE: HX Editor (Librarian, IR Loader)
• • COMPATIBILITY: Windows, macOS
• • POWER SOURCE: 9V DC Power Supply (Included)
• • HEIGHT: 2.6"
• • WIDTH: 7.01"
• • DEPTH: 4.96"
• • WEIGHT: 1.75 lbs
