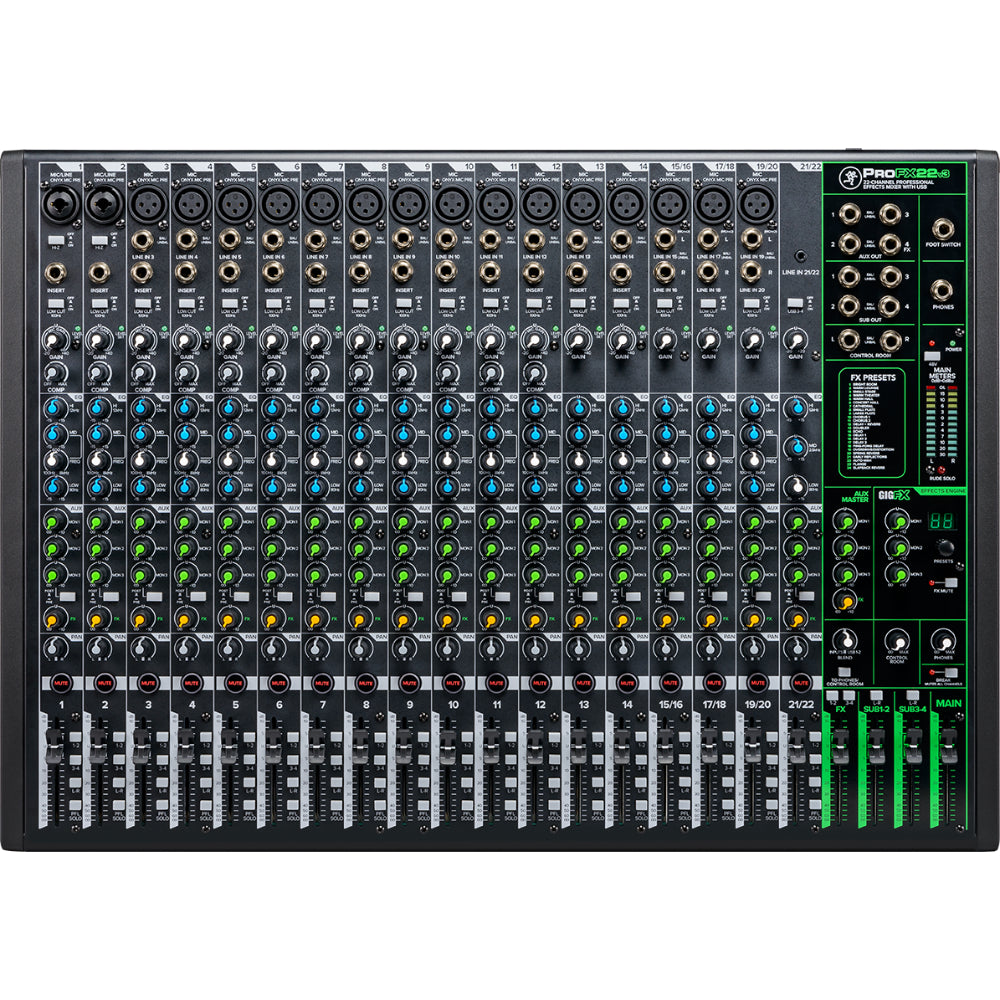

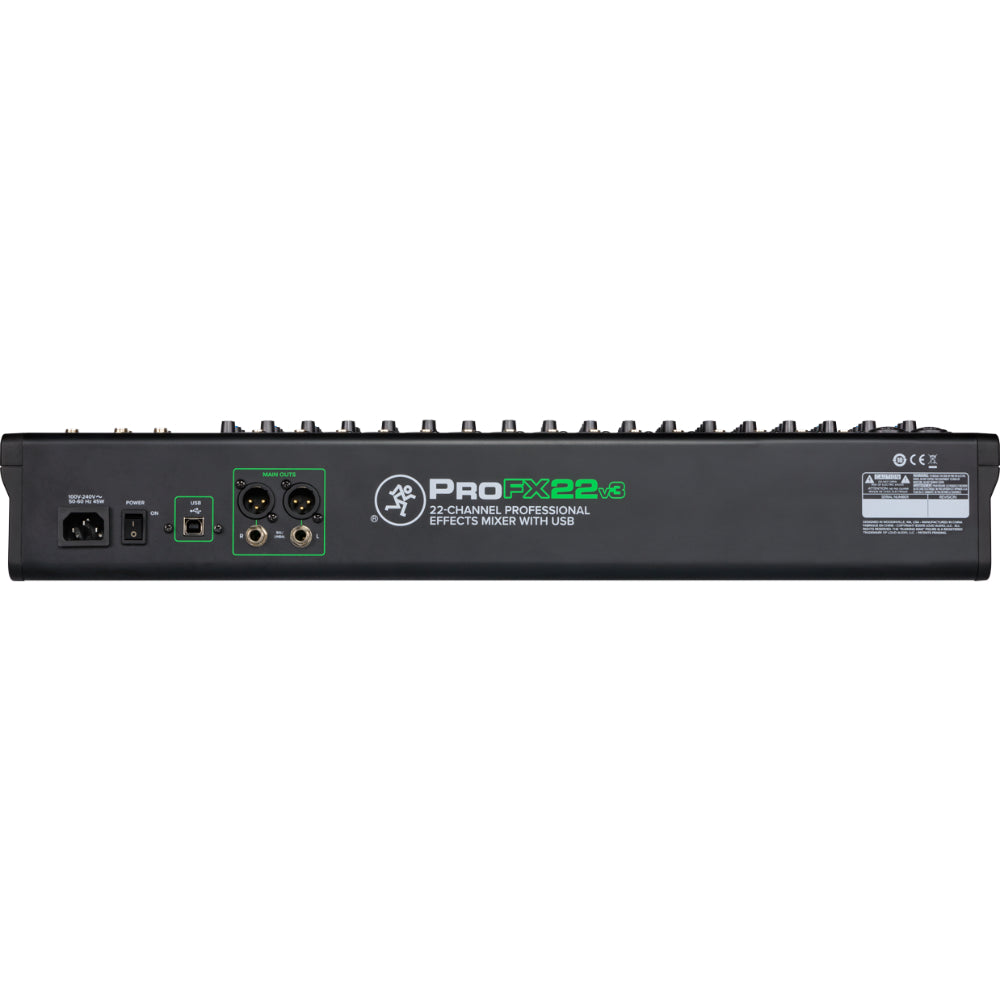

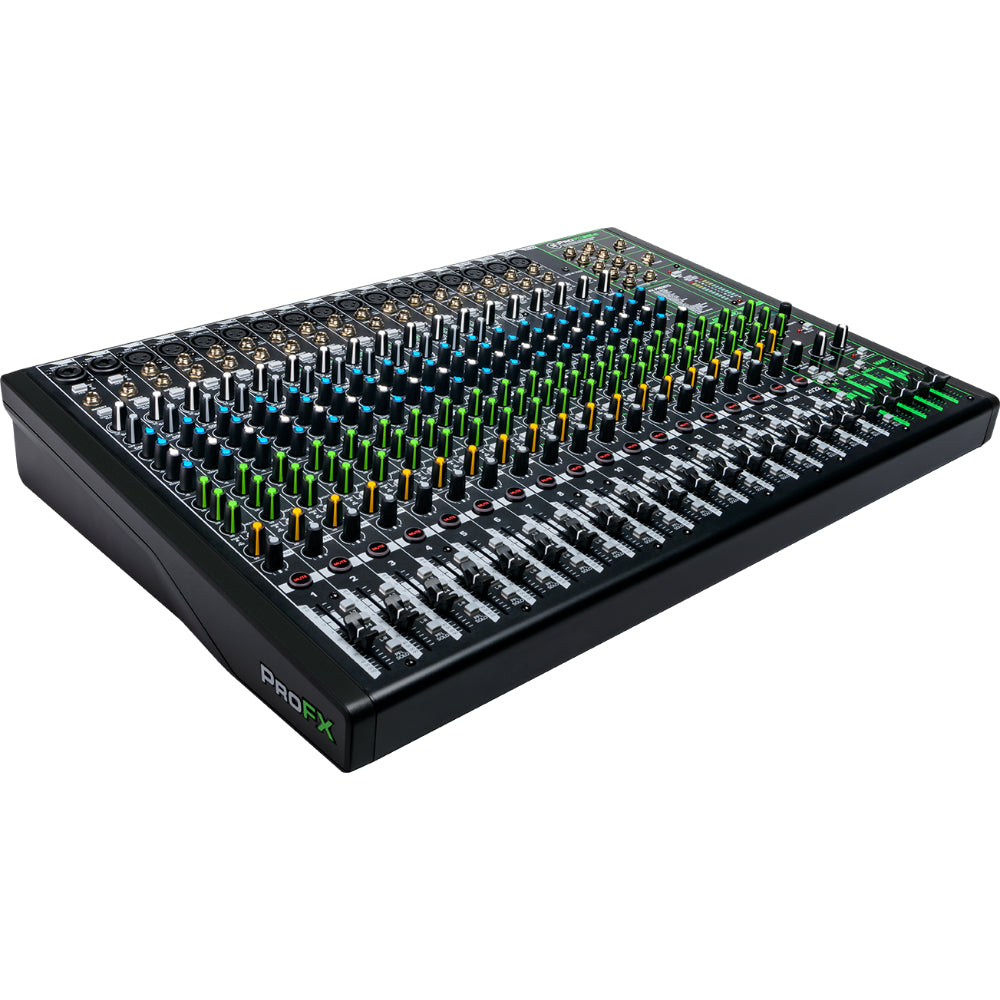

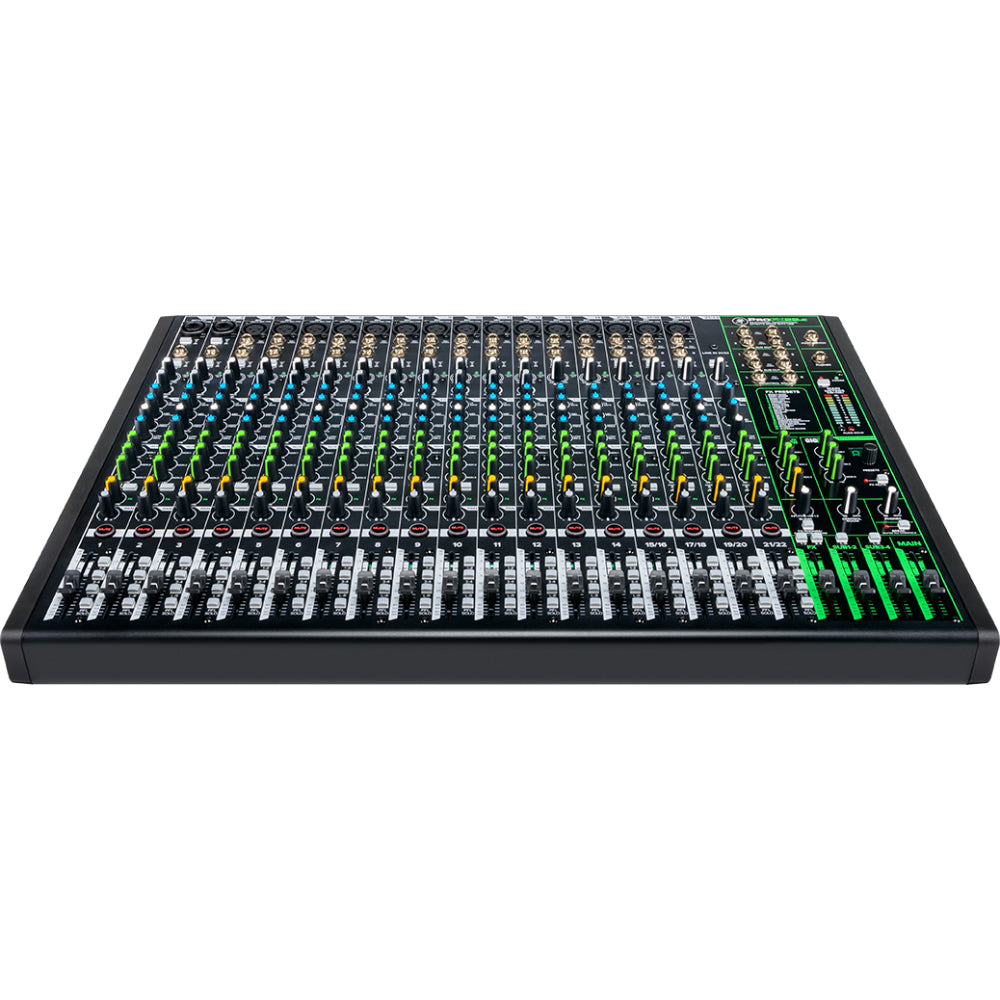

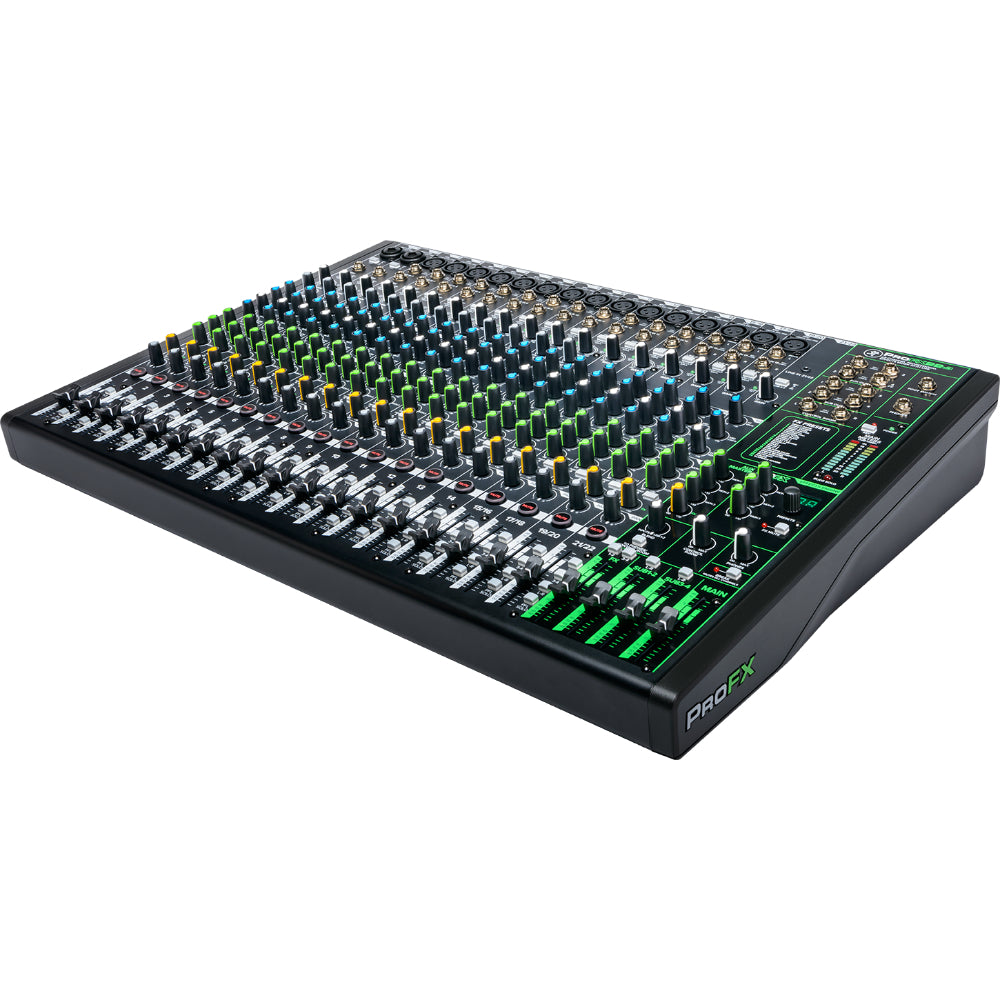

Mackie ProFX22v3 22 Channel Mixer Compact USB Mixers With Effects
The Mackie ProFX22v3 offers you the utmost control, adaptability, and flexibility for a variety of uses, from live sound reinforcement to recording. The Mackie ProFX22v3 has a strong FX engine and WaveformTM OEM to support your workflow. That is just one of the many capabilities of the Mackie ProFX22v3 22-channel USB mixer. With the ProFX22v3, you can have the outstanding sound and features of larger mixers without sacrificing portability. With its 17 Onyx preamps, this mixer produces excellent sound for your guitars, keyboard, and microphones. When you're ready to go, you may add a little additional flair to your mix with the onboard GigFX. The Mackie ProFX22v3 will always provide you with incredible audio quality, whether you're in your studio or on stage.
FEATURES
GigFX effects engine delivers 24 effects including reverbs, delays, and choruses
17 Mackie Onyx mic preamps deliver clear signal and 60dB of gain
Rugged design will stand up to the wear and tear of the road
3 Band EQ and 100Hz low-cut filter on all channels
Built-in channel compression
48-volt phantom power on all mic channels
24-bit/192kHz A/D for unmatched audio quality
USB for playback music and recording into your computer
Balanced XLR and balanced/unbalanced outputs
Headphone output has separate volume control for comfortable monitoring
SPECIFICATIONS
Type: Analog Mixer with USB Interface
Channels:22 (14 x mono, 4 x stereo)
Computer Connectivity's (2 x 4)
A/D Resolution:24-bit/192kHz
Faders:22 x 60mm Faders
Inputs - Mic Preamps:2 x XLR-1/4" combo (mic/line/Hi-Z), 15 x XLR (mic)
Phantom Power: Yes
Inputs - Line:12 x 1/4", 6 x 1/4" (3 x stereo), 1 x 1/8" (stereo)
Outputs - Main:2 x XLR, 2 x 1/4" (L/R), 2 x 1/4" (control room)
Outputs - Other:4 x 1/4" (sub group out)
Aux Sends:1 x FX Send (post), 2 x Monitor Send (pre), 1 x Monitor Send (pre/post)
Send/Return I/O:1 x 1/4" (FX send), 3 x 1/4" (monitor send)
Busses/Groups:2 x Sub Group
Inserts:14 x 1/4" (channel)
Headphones:1 x 1/4"
USB:1 x Type B
Other I/O:1 x 1/4" (footswitch)
EQ Bands:3-band EQ with Variable Mid Frequency (mic channels), 100Hz Low-cut Filter
