Mackie ProFX30v3 30 Channel Mixer Compact USB Mixers With Effects
Mackie's ProFX30v3 30-channel mixing console is perfect for a wide range of live sound reinforcement applications, from lecturers and presenters to live bands and DJs. With its 24 XLR mic inputs using low-noise Vita microphone preamps, 3-band EQ per channel, 3 aux sends, and an FX out for feeding additional processors, the ProFX30v3 provides professional functionality to accommodate a broad range of setups. The ProFX30v3 has 30 line inputs in addition to the microphone inputs for connecting keyboards, samplers and other equipment. Additionally, RCA tape input and output are available for attaching portable music players to related equipment. The mixer also features sturdy 60mm faders for the main/monitor masters, return, and all input channels.
Product features
High-resolution recording via USB
Award-Winning Onyx Preamps for Pristine Audio

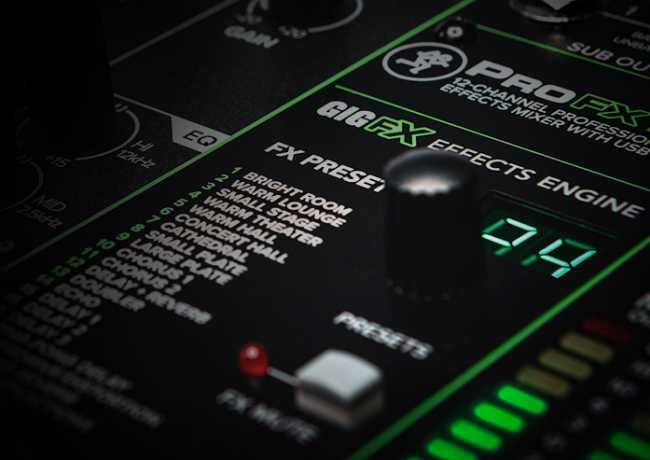

Powerful FX Engine with Customizable Presets
48-volt Phantom Power
Headphone Output with Independent Volume Control
Dedicated Control Room Output
Rugged Design
SPECIFICATIONS
Type: Analog Mixer with USB Interface
Channels:30 (22 x mono, 4 x stereo)
Computer Connectivity's (2 x 4)
A/D Resolution:24-bit/192kHz
Faders:30 x 60mm Faders
Inputs - Mic Preamps:2 x XLR-1/4" combo (mic/line/Hi-Z), 23 x XLR (mic)
Phantom Power: Yes
Inputs - Line:20 x 1/4", 6 x 1/4" (3 x stereo), 1 x 1/8" (stereo)
Outputs - Main:2 x XLR, 2 x 1/4" (L/R), 2 x 1/4" (control room)
Outputs - Other:4 x 1/4" (sub group out)
Aux Sends:1 x FX Send (post), 2 x Monitor Send (pre), 1 x Monitor Send (pre/post)
Send/Return I/O:1 x 1/4" (FX send), 3 x 1/4" (monitor send)
Busses/Groups:2 x Sub Group
Inserts:22 x 1/4" (channel)
Headphones:1 x 1/4"
USB:1 x Type B
Other I/O:1 x 1/4" (footswitch)
EQ Bands:3-band EQ with Variable Mid Frequency (mic channels), 100Hz Low-cut Filter
