MOGAMI W2319 5mm Flexible Guitars Cables (23AWG) - 100m

MOGAMI W2319 5mm Flexible Guitars Cables (23AWG) - 100m

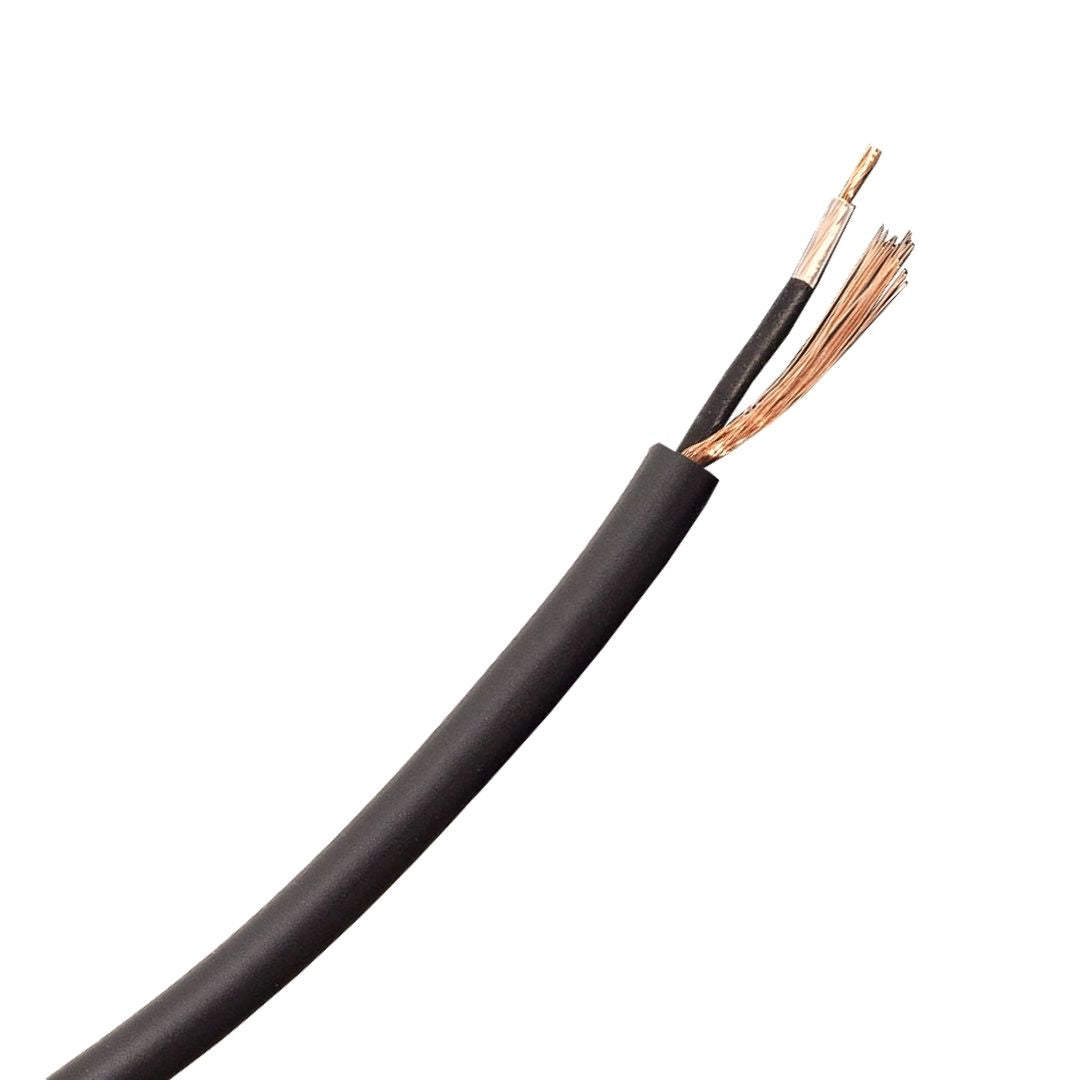

Most musical instrument sound pick-ups, for example those in electric guitars, are comprised of high impedance circuits driven mainly by voltage, with very little electrical current flow. That is why handling noise (microphonics) can be a problem for guitar cables. Microphonic noise is caused by the minute voltage generated when a cable is flexed, stepped on, etc. Guitar cables must be designed to prevent this, so a conductive PVC layer is placed under the shield conductor to drain away this voltage. Note: This conductive layer must be stripped back when wiring, or a partial short will result.

FEATURES

• Part No.: W2319
• Conductor: 12/0.18TA, Size 0.305 mm² (#23 AWG)
• Insulation: Outer Diameter 1.6 mm (0.063"), Material PE, Color Clear
• Sub-Shield: Outer Diameter 1.8 mm (0.071"), Material Conductive PVC (Carbon PVC), Color Black
• Main Shield: Served Shield Approx. 38/0.16TA
• Jacket: Outer Diameter 5.0 mm (0.197"), Material PVC, Color Black

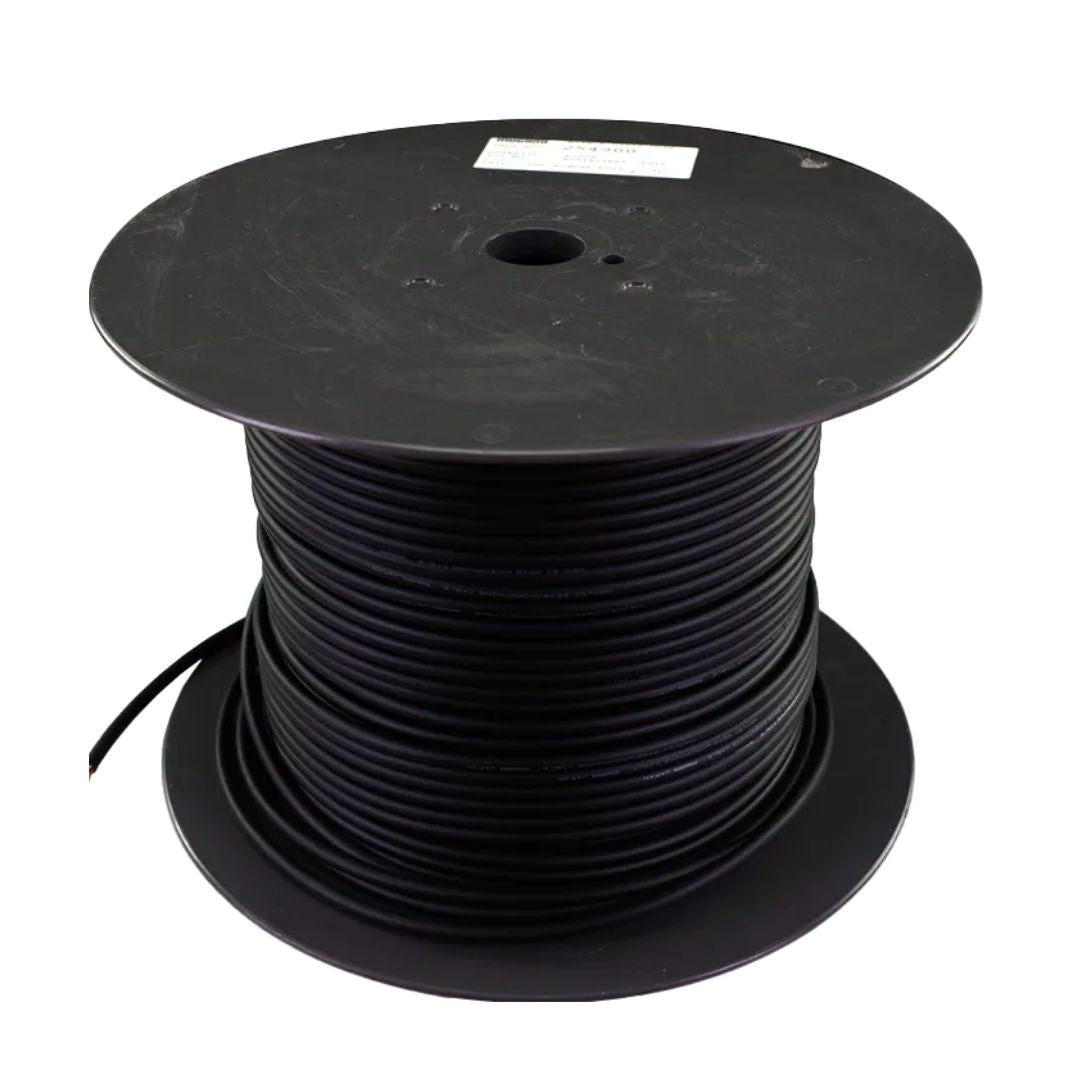

• Roll Sizes: 100 m (328 ft)
• Weight: 3.5 kg per 100 m roll
