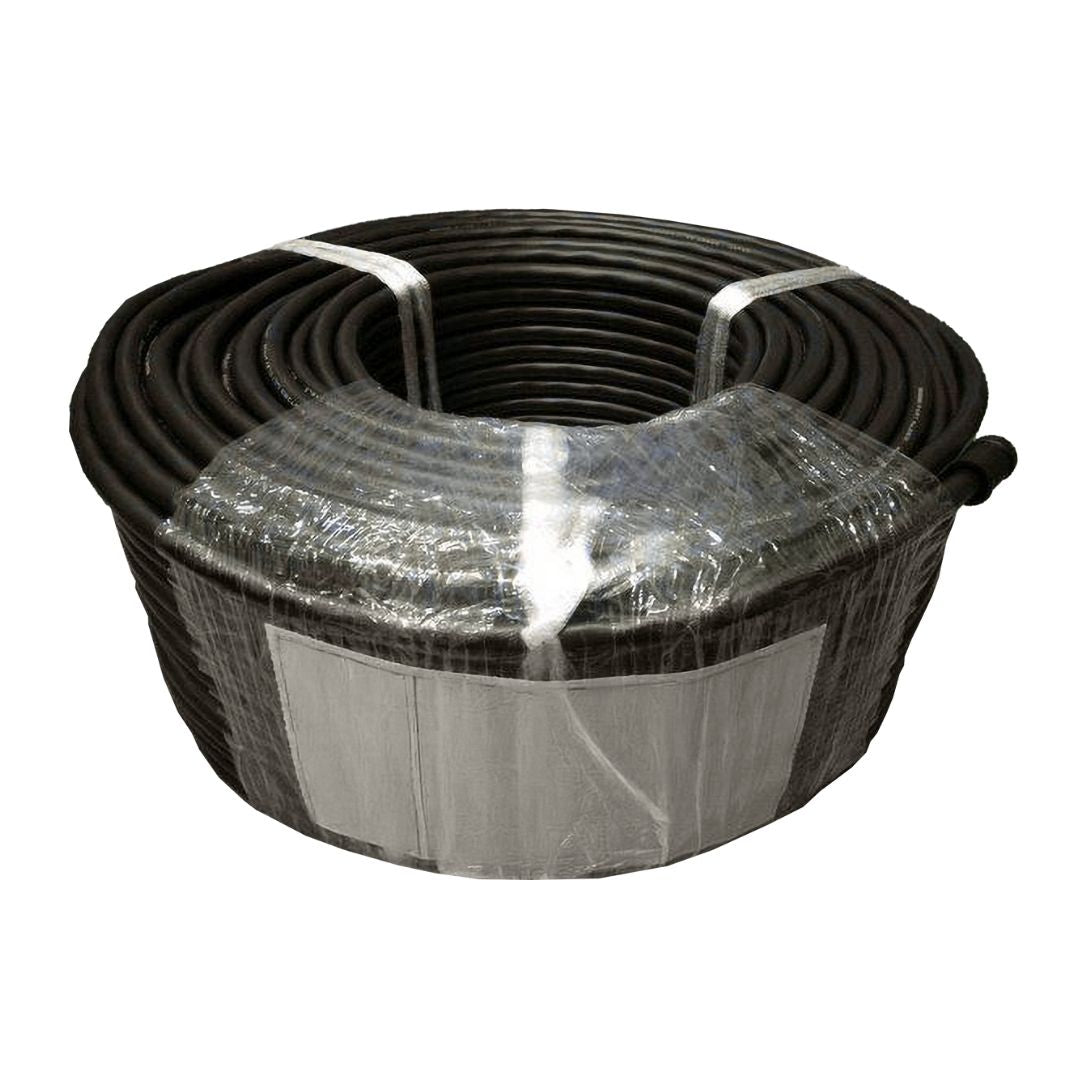

MOGAMI W2930 2 channel Snake CABLE 26AWG 7.5mm - 100m

MOGAMI W2930 2 channel Snake CABLE 26AWG 7.5mm - 100m

Mogami multicore cables are designed for the highest level of audio performance and feature superb electrical and mechanical characteristics while remaining compact, superflexible and easy to use.

FEATURES

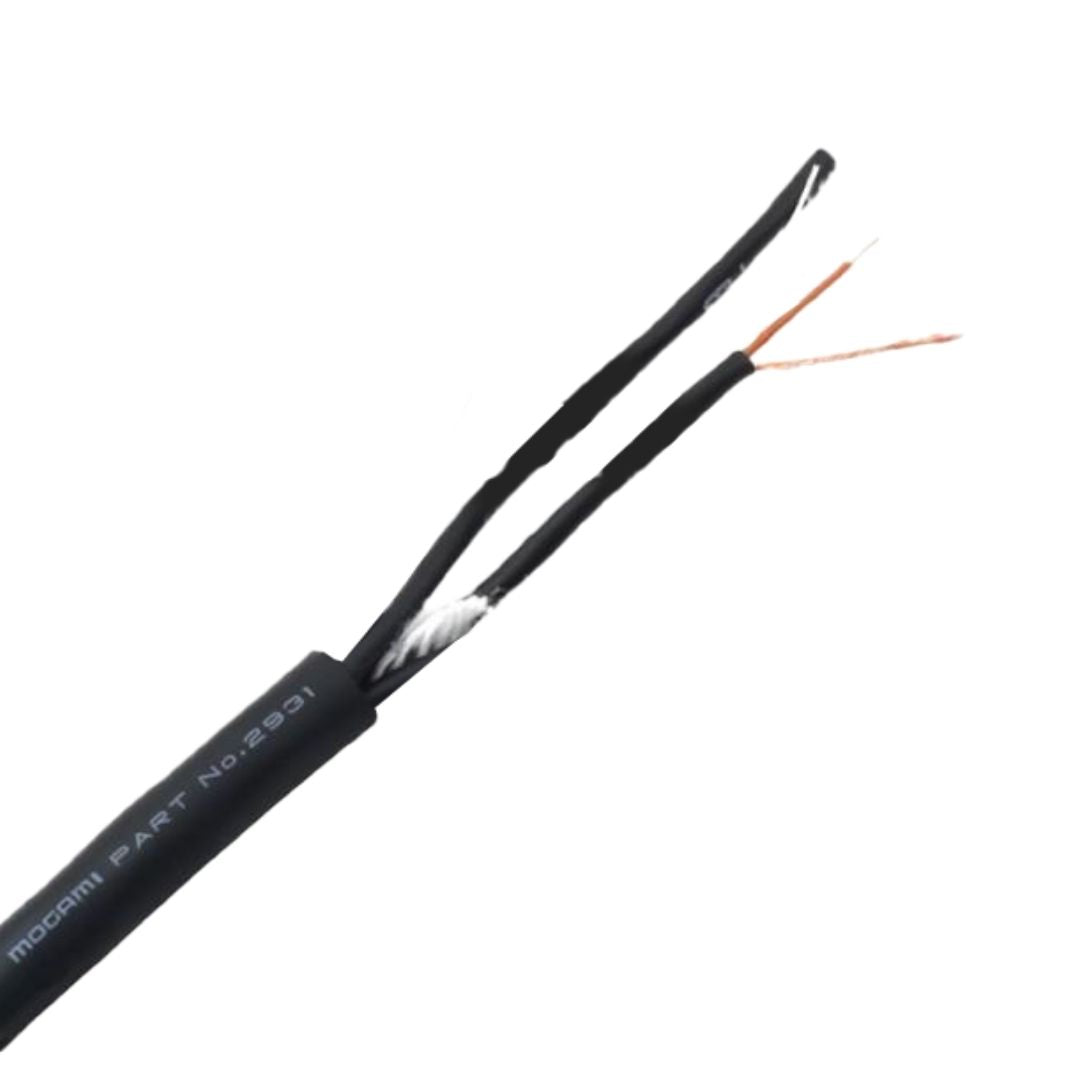

• Individually twisted shielded pairs, available in 2 to 48 channels.
• XLPE (Cross Linked Polyethylene) insulation provides superb electrical characteristics and will not melt or shrink back during soldering.
• Rugged and flexible construction that is easy to handle, even at temperatures down to -20C (-4F).
• Easy cable identification system:
• Channel numbers are printed and underlined on each core jacket to ensure correct identification, regardless of which end is stripped.
• Outer jackets of each pair are colour coded by standard resistor colour code, allowing quick identification of conductor pairs.
• Inner conductors are also colour coded based on the international standard resistor colour code. Each pair is colour coded by jacket and conductor colour combination.
• Each channel has a drain wire and served (spiral) bare copper shield. The drain wire simplify termination and can be crimped by the same size contact as the inner conductor pair.
• CL2 rated version available. Conductor size of CL2 rated version is thicker #25AWG so that it is also recommended for rugged application and firm and easier crimp terminal connector wiring as well as NEC fire regulation requirement.
