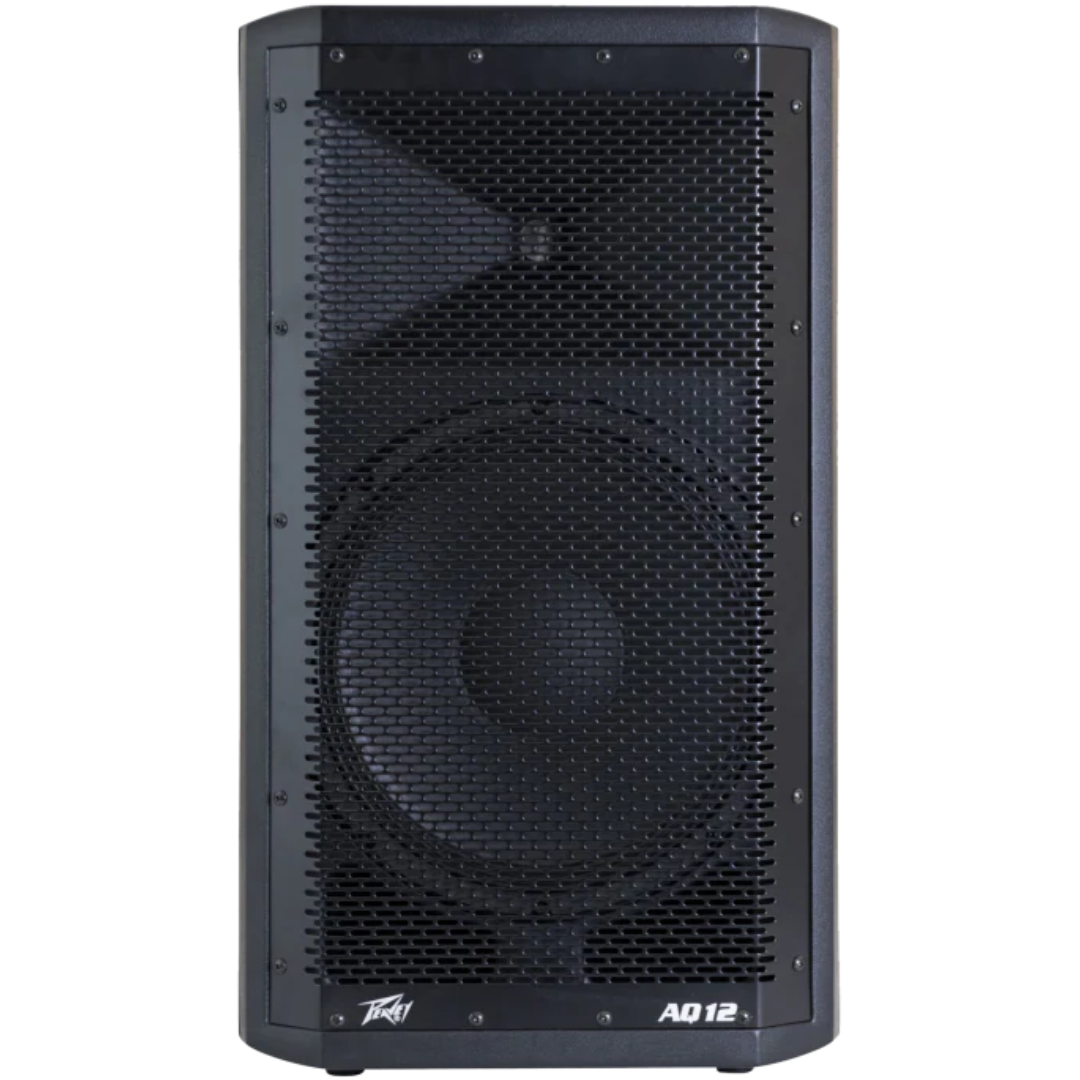

Peavey Aquarius AQ 12 670-watt 12-inch Powered Speaker

Peavey Aquarius AQ 12 670-watt 12-inch Powered Speaker

Peavey Aquarius AQ 12 670-watt 12-inch Powered Speaker

Features

• Two-way bi-amplified analog amp powered speaker system
• 12" heavy-duty woofer
• DX™14 compression driver, with 1.4 inch titanium diaphragm
• 670 watts peak dynamic woofer power, 330 watts peak dynamic tweeter power
• Bluetooth® streaming and pairing are supported
• DSP processing is 56 bit double-precision
• DSP I/O is at 48 kHz and 24 bits, with low-jitter, professional grade components
• Dynamic bass boost function
• Fan cooled for maximum reliability
• Peavey® Designed Quadratic Throat Waveguide™ technology, 110 by 80 degree coverage
• Input is via a combo female XLR and 1/4" TRS phone jack with balanced input OR a Bluetooth ® signal can be streamed to the speaker system.
• Mic/Line switch to accommodate a wide range of input signals
• Thru/Mix output is via a male XLR jack
• Multiple Factory Preset EQ settings for the DSP crossover system
• Rugged plastic injection-molded trapezoidal enclosure
• Cabinet has dual rear corner angled sides for floor monitor use.
• Full-coverage perforated steel grille, with powder coat finish
• Pole mount molded-in for 1 3/8" diameter poles
• Packed Weight: 40.35 lb (18.3 kg)
• Packed Length: 28.25" (71.75 cm)
• Packed Width: 16.375" (41.59 cm)
• Packed Height: 16.125" (40.96 cm)

Frequency Response : 68 Hz to 19 kHz, +/- 6 dB, anechoic environment

Usable Low Frequency limit (-10 dB point anechoic) : 55 Hz

Nominal sensitivity (1W @1M, swept sine input in anechoic environment) : 95 dB (average)

Maximum Sound Pressure Gain (1 meter) : 125 dB SPL peak with music

Radiation Angle measured at -6 dB point of polar response : Nominal: 110 degrees horizontal X 80 degrees vertical(Axis of the vertical main polar lobe is angled down 10 degrees, resulting in the angular pattern with respect to straight ahead being +30, -50 degrees)

Transducer Complement : Heavy-duty 12” woofer with 2” voice coil & 44 oz. magnetDX™14 1.4” titanium diaphragm dynamic compression driver

Box Tuning Frequency : 52 Hz

Electroacoustic crossover frequency : 1.9 kHz

Crossover type : Internal Electronic DSP based two-way crossover with driver EQ, level matching, bass boost, limiting and subsonic filtering.

Crossover Slopes : Linkwitz-Riley 24 dB/octave (4th order) low pass, 24dB/octave (fourth order) high pass, both with driver EQ incorporated.

Input Connections : One combo female XLR / 1/4” phone jack providing balanced line-level operation from the 1 / 4” jack section, and the XLR section.Bluetooth® input via wireless link, with pairing options.

Output Connections : One male XLR jack. The Thru/Mix jack is intended for the use of linking multiple AQ™12‘s in a line or to provide a feed to a powered subwoofer, or other electronics that needs to receive a full range version of the input signal.The Mix function converts this jack to provide a mixed signal of the input jack and the Bluetooth® source.

Enclosure Materials & Finish : Black injection-molded plastic with textured surface, black powder-coated perforated full-coverage grille

Mounting provisions : Four rubber feet provide vibration free floor or stage use, and a molded-in stand mounting cup with industry standard 1 3/8” inside diameter for use with subwoofer poles and speaker stands is on the bottom.Unit is not designed to be flown overhead.

Shipping Weight : 18.3 kg

Shipping Dimensions : 28.25 × 16.375 × 16.125 in
