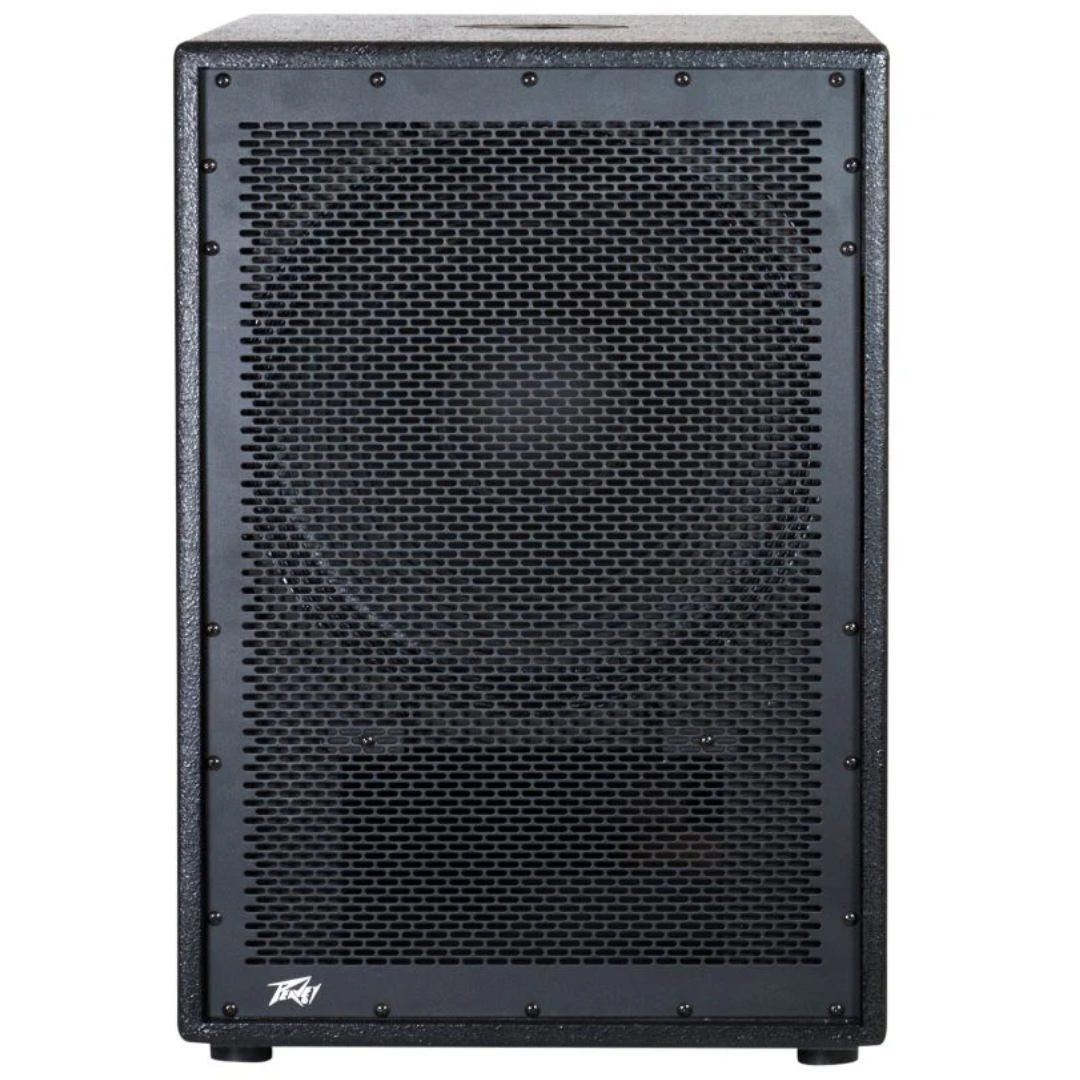

Peavey PVs 15 1000W 15-inch Powered Subwoofer

Peavey PVs 15 1000W 15-inch Powered Subwoofer

Peavey PVs 15 1000W 15-inch Powered Subwoofer

Features

• Vented bass powered subwoofer enclosure
• 1,000 watts peak available power
• 15" Heavy Duty Woofer
• Power Amp has forced air cooling for maximum reliability
• Internal line level low-pass/high-pass crossover network
• DSP based crossover, compression, limiting and EQ.
• Bass Enhance button for increased bass impact
• XLR/quarter inch combo jack input
• Two High-Pass XLR outputs, One Full Range Thru XLR output
• Polarity Switch for polarity reversal of subwoofer
• Ground Lift for lifting cable shield from ground
• Full-coverage heavy-duty perforated steel grille
• Steel handles
• Large heavy-duty locking casters with damped bearings
• Compact dimensions for a 15" woofer based sub
• Threaded Pole Mount with speaker pole included
• Packed Weight: 99.23 lb (45 kg)
• Packed Length: 29.6" (75.18 cm)
• Packed Width: 28.1" (71.37 cm)
• Packed Height: 21.1" (53.59 cm)

Frequency Response, 1 meter on-axis, swept-sine in half space Environment (-6 dB) : 47 Hz – 180 Hz (Crossover Control Full CW)47 Hz – 90 Hz (Crossover Control full CCW)

Low Frequency range (-10 dB, half space) : 44 Hz

Power Amp Rating : 1,000 watts peak available power

Sine wave Power : 500 watts into 4 ohms (Output duration is limiter controlled)

Maximum Sound Pressure Level (1 meter in half space) : 124 dB SPL continuous 127 dB SPL peak

Transducer Complement : 15” premium heavy-duty woofer, 3” voice coil, 90 oz. magnet

Box Tuning Frequency : 50 Hz

Input Connections : One combo female XLR/ 1/4” phone jack providing balanced or unbalanced operation.

Electronic Input Impedance (Nominal) : Line In: 20 k ohms balanced (XLR or 1/4”), 10 k ohms unbalanced 1/4”

Output Connections : Two High Pass Outputs. One Full Range Thru.

High Pass Output slope : 24 dB/octave

Infrasonic Filter Slope : 36 dB/octave

Nominal Amplifier Frequency Response : +0, -3 dB from 20 Hz to 20 kHz

Hum and Noise : Greater than 90 dB below rated power

THD and IM : Typically less than 0.1 %

Enclosure Materials & Finish : Black acrylic painted enclosure with 15 mm MDF, with a full-length, black powder coated perforated steel grille. Four rubber feet for floor use, and four heavy-duty locking casters for transport.

Mounting Provisions : 1 3/8” pole mount with M20 threaded pole for stand mounting a suitable speaker on top of the Sub, andfour large rubber feet on bottom for floor use. Threaded pole is supplied with the unit.

Shipping Weight : 45 kg

Shipping Dimensions : 29.6 × 28.1 × 21.1 in
