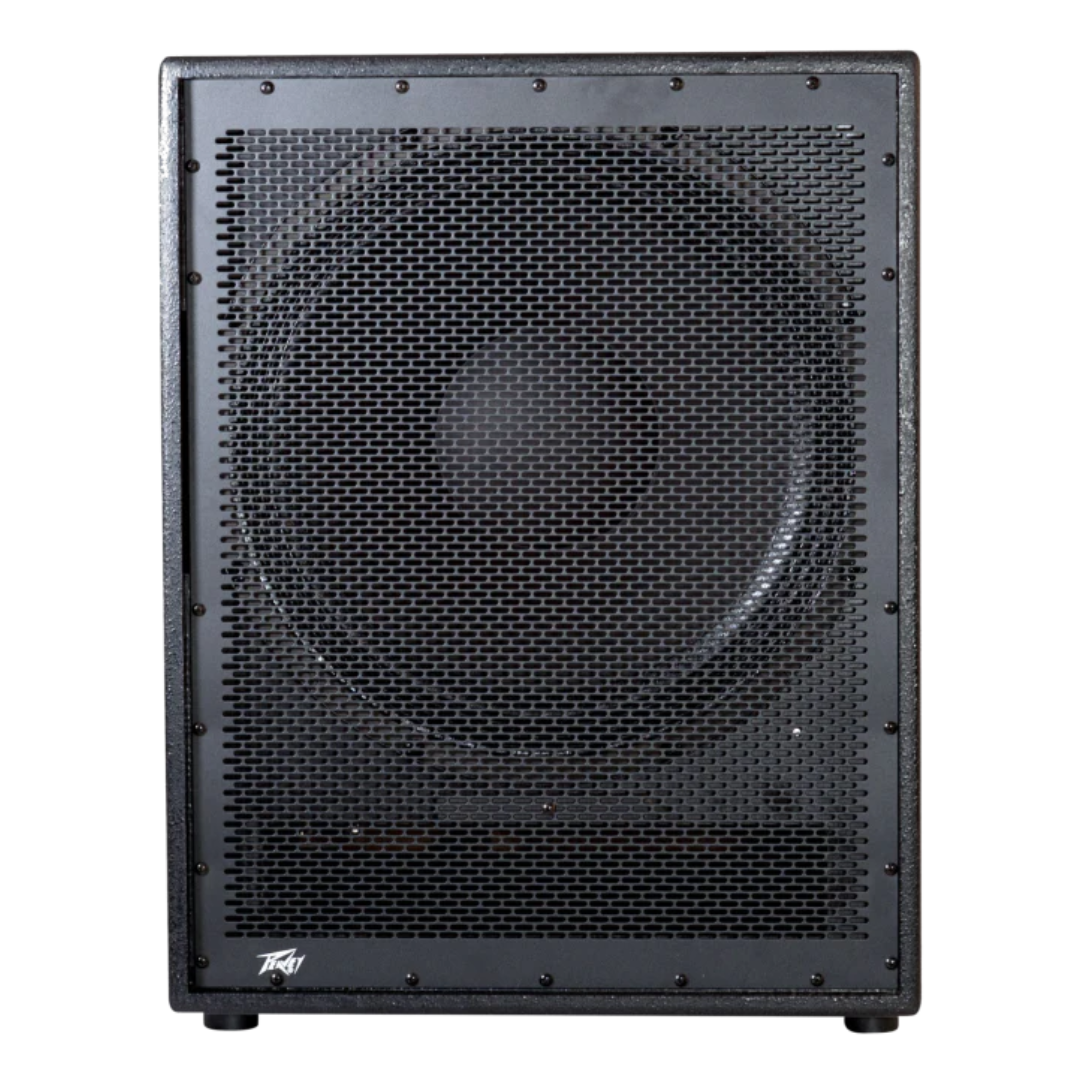

Peavey PVs 18 1000W 18-inch Powered Subwoofer

Peavey PVs 18 1000W 18-inch Powered Subwoofer

Peavey PVs 18 1000W 18-inch Powered Subwoofer

Features

• Vented bass powered subwoofer enclosure
• 1,000 watts peak available power
• 18" Heavy Duty Woofer
• Power Amp has forced air cooling for maximum reliability
• Internal line level low-pass/high-pass crossover network
• DSP based crossover, compression, limiting and EQ.
• Bass Enhance button for increased bass impact
• XLR/quarter inch combo jack input
• Two High-Pass XLR outputs, One Full Range Thru XLR output
• Polarity Switch for polarity reversal of subwoofer
• Ground Lift for lifting cable shield from ground
• Full-coverage heavy-duty perforated steel grille
• Steel handles
• Large heavy-duty locking casters with damped bearings
• Compact dimensions for an 18" woofer based sub
• Threaded Pole Mount with speaker pole included
• Packed Weight: 113.56 lb (51.5 kg)
• Packed Length: 31.3" (79.5 cm)
• Packed Width: 26.2" (66.55 cm)
• Packed Height: 23.5" (59.69 cm)

Frequency Response, 1 meter on-axis, swept-sine in half space Environment (-6 dB) : 46 Hz – 180 Hz (Crossover Control Full CW)46 Hz – 90 Hz (Crossover Control full CCW)

Low Frequency range (-10 dB, half space) : 43 Hz

Power Amp Rating : 1,000 watts peak available powerSine wave Power: 500 watts into 4 ohms (Output duration is limiter controlled)

Maximum Sound Pressure Level (1 meter in half space) : 124 dB SPL continuous127 dB SPL peak

Transducer Complement : 18” premium heavy-duty woofer, 3” voice coil, 113 oz. magnet.

Box Tuning Frequency : 38 Hz

Input Connections : One combo female XLR/ 1/4” phone jack providing balanced or unbalanced operation.

Electronic Input Impedance (Nominal) : Line In: 20 k ohms balanced (XLR or 1/4”), 10 k ohms unbalanced 1/4”

Output Connections : Two High Pass Outputs, independently electrically buffered.One Full Range Thru, electrically buffered.

Electronic Crossover : Linkwitz-Riley crossover variable from 90 Hz to 180 Hz.Low Pass slope: 24 dB/octaveHigh Pass Output slope: 24 dB/octave

Infrasonic Filter Slope : 36 dB/octave

Nominal Amplifier Frequency Response : +0, -3 dB from 20 Hz to 20 kHz

Hum and Noise : Greater than 90 dB below rated power

THD and IM : Typically less than 0.1 %

Enclosure Materials & Finish : Black acrylic painted enclosure with 15 mm MDF, with a full-length, black powder coated perforated steel grille.Four rubber feet for floor use, and four heavy-duty locking casters for transport.

Mounting Provisions : 1 3/8” pole mount with M20 threaded pole for stand mounting a suitable speaker on top of the Sub, and fourlarge rubber feet on bottom for floor use. Threaded pole is supplied with the unit.

Shipping Weight : 51.5 kg

Shipping Dimensions : 31.3 × 26.2 × 23.5 in
