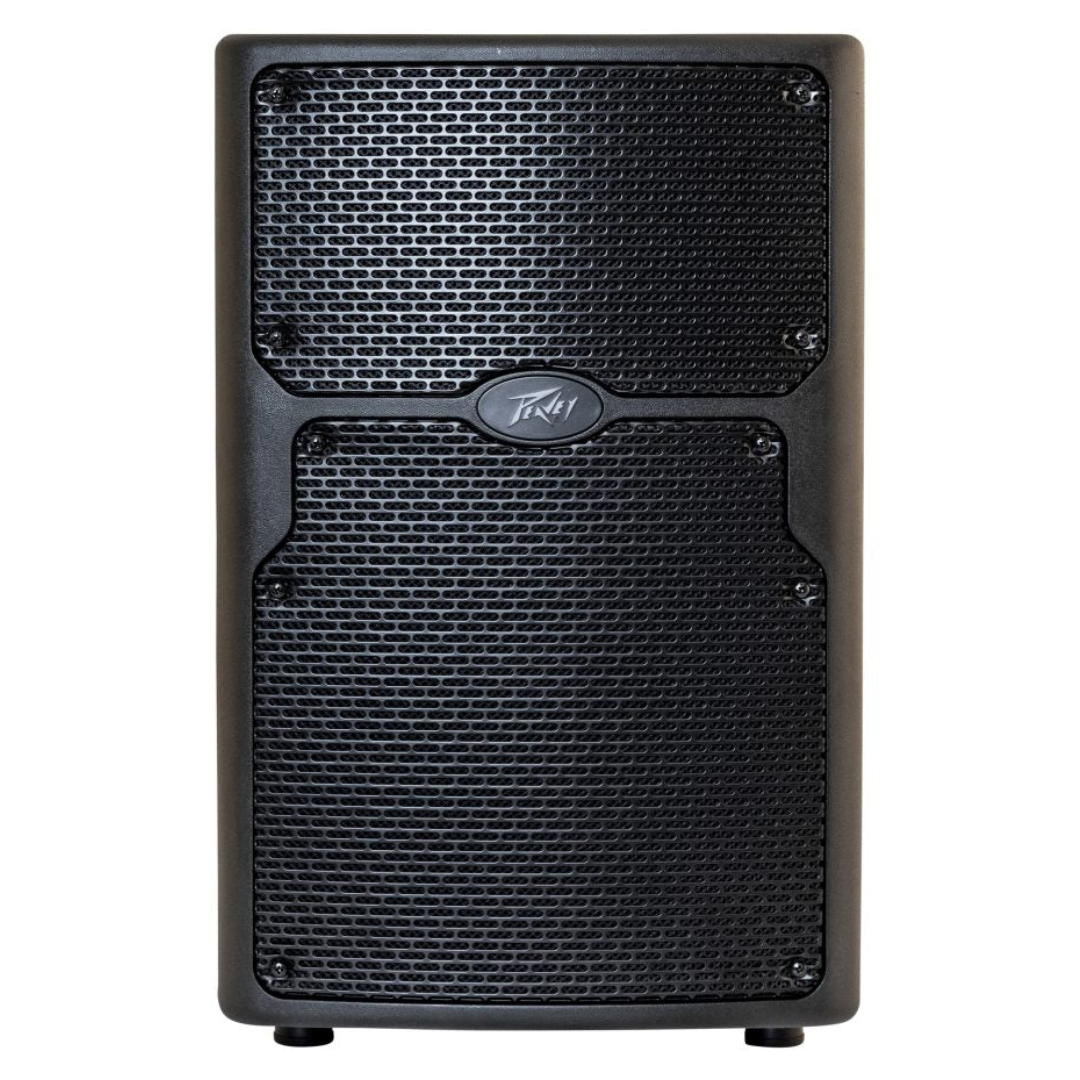

Peavey PVXp 10 Bluetooth 10" 520W Powered Loudspeaker

Peavey PVXp 10 Bluetooth 10" 520W Powered Loudspeaker

Peavey PVXp 10 Bluetooth 10" 520W Powered Loudspeaker

Features

• Two-way bi-amped sound reinforcement enclosure
• RX™10 compression driver, with 1 inch titanium diaphragm
• Reliable fan-cooled power amps with DSP protection
• Total of 520W peak dynamic power
• DSP control for precise crossover, EQ and limiting functions
• Bluetooth® input is via a dedicated input channel
• Mix/Thru Output is via a male XLR jack
• Durable plastic injection-molded trapezoidal enclosure
• Extra angled section on right side allows floor monitor use
• Pole mount molded-in for 1 3/8" diameter poles
• Top and bottom flying point inserts
• 10" heavy-duty woofer with 2 3/8" voice coil & 50 oz. magnet
• Full-coverage heavy-duty perforated steel grilles, with powder coat finish
• DSP I/O is at 48 kHz and 24 bits, internal processing is 56 bit double-precision
• Peavey's Quadratic Throat Waveguide™ technology, 100 by 60 degree coverage
• Asymmetrical horn aims the sound down 10 degrees, at the audience, not over their heads
• Analog input is via a combo female XLR and 1/4" TRS phone jack with balanced input
• Three channels in total, two for analog, and one for Bluetooth or AUX input via a 1/8" jack
• Each channel has a level control and a 3-band EQ section to adjust and shape the input signals
• Packed Weight: 34.18 lb (15.5 kg)
• Packed Length: 22.441" (57 cm)
• Packed Width: 15.945" (40.5 cm)
• Packed Height: 14.37" (36.5 cm)

Frequency Range, 1 meter on-axis, swept-sine in ½ Space environment : 52 Hz to 20 kHz

Frequency Response, 1 meter on-axis, swept-sine in anechoic environment : 65 Hz to 20 kHz (±3 dB)

Usable Low Frequency limit (-10 dB point anechoic) : 54 Hz

Nominal sensitivity (1W @1M, swept sine input in anechoic environment) : 96 dB (average)

Maximum Sound Pressure Level (1 meter) : 123 dB SPL peak with music

Radiation Angle measured at -6 dB point of polar response : Nominal: 100 degrees horizontal X 60 degrees vertical(Axis of the vertical main polar lobe is angled down 10 degrees, resulting in the angular pattern with respect to straight ahead being +20, -40 degrees)

Transducer Complement : Heavy-duty 10” woofer with 2 3/8” voice coil & 50 oz. magnetRX™10 1.0” titanium diaphragm dynamic compression driver

Electroacoustic crossover frequency : 2,000 Hz

Crossover type : Advanced DSP based filter also providing driver EQ, level matching, bass boost, limiting, compression and subsonic filtering.

Crossover Slopes : Nominally 24 dB/octave (4th order) low pass, 24dB/octave (fourth order) high pass, both with driver EQ incorporated.

Input Connections (Each, Channels 1 and 2) : One combo female XLR and 1/4" phone jack providing balanced line-level operation. Mic/Line switch provides extra gain for microphone use.

Input Connections (Channel 3) : AUX is a 1/8" phone type jack. Channel 3 is nominally the Bluetooth® signal source channel.

Output Connection : One male XLR jack. This jack is intended for the use of linking multiple PVX™p 10‘s in a line or to provide a feed to a powered subwoofer, or other electronics that needs to receive a full range version of the input signal.

Enclosure Materials & Finish : Black injection-molded plastic with textured surface, black powder-coated perforated grilles.

Mounting provisions : Unit has two sets of two M8 inserts, one pair on the top, and one pair on the bottom.Additional mounting points are a set of four M8 inserts on the top, and a set of four on the bottom, which use the Peavey VersaMount™ 70 mounting bracket.Four rubber feet provide vibration free floor or stage use, and a molded-in stand mounting cup is on the bottom.

Shipping Weight : 15.5 kg

Shipping Dimensions : 22.441 × 15.945 × 14.37 in
