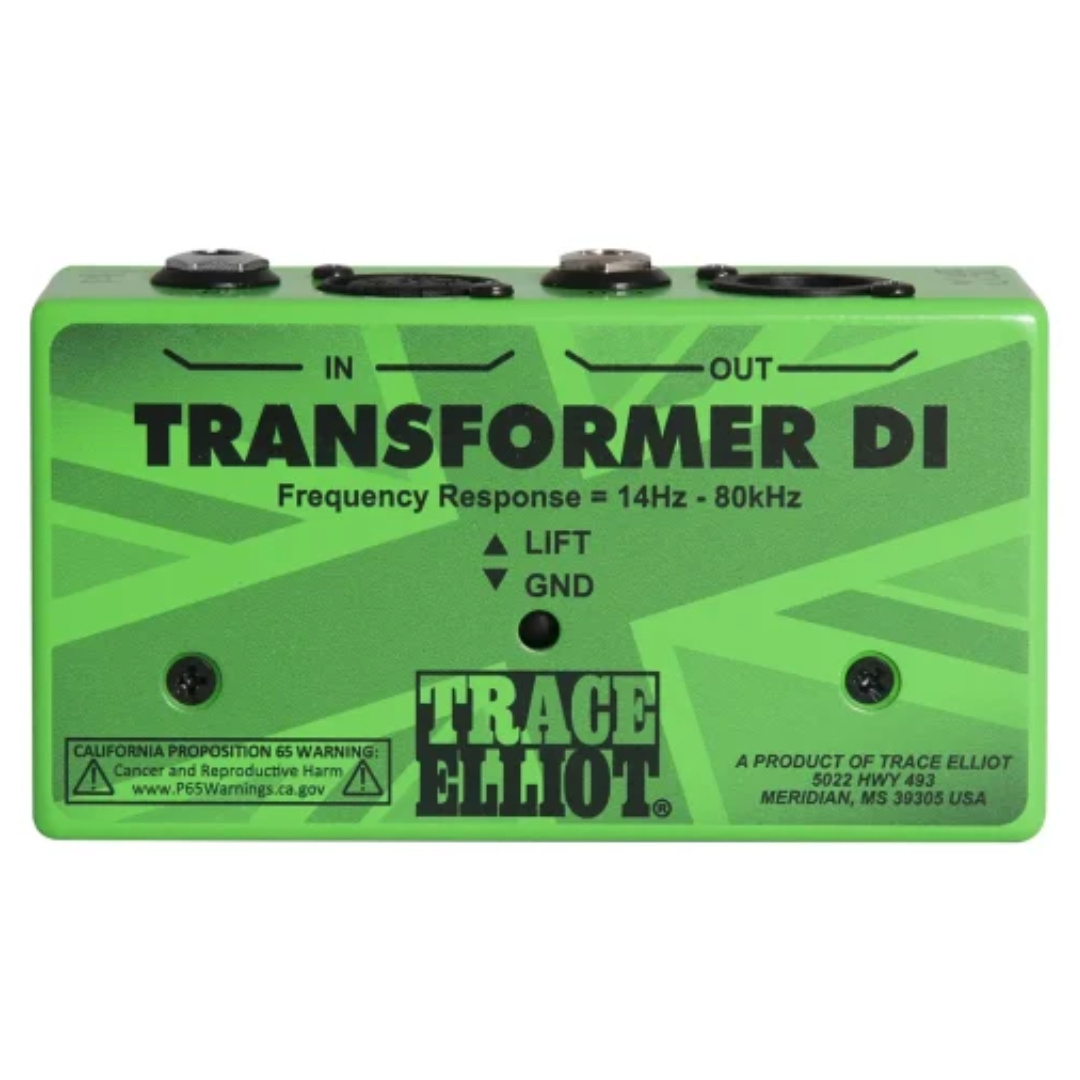

Trace Elliot Transformer DI Pedal
When you need to convert between balanced and unbalanced signals to connect your gear, the Trace Elliot® Transformer DI does so with 1-to-1 audiophile quality. Equipped with a perfectly balanced proprietary transformer design, the Transformer DI solves the balanced/unbalanced conversion challenge with total transparency. Never lose your low B – full clarity down to 14Hz means nothing you play gets lost.
Features:
• General purpose audiophile quality 1:1 line level audio transformer interface.
• Transforms balanced to unbalanced line signals or unbalanced to balanced line signals.
• Perfectly balanced proprietary transformer design with ultra-high permeability Ni-Fe core.
• Frequency Response of 20Hz to 20kHz (-0.5dB) with no more than +/-1.0dB of variation from 14Hz to 80kHz.
• Total Harmonic Distortion is <0.015% from 70Hz to 80kHz.
• Total Harmonic Distortion is 0.5% at 20Hz.
• Electrical isolation of >500V between secondary and primary winding or windings.
• Insertion loss <1.0dB.
• Input levels up to +22.2dBu are acceptable.
• Ground lift with RF rejection circuitry.
• Excellent for low to mid impedance signal sources.
• Never lose your low B – full clarity down to 14Hz means nothing you play gets lost.
AUTHENTICITY
GUARANTEED
GUARANTEE
BEST PRICE
AFTER SALES &
WARRANTY SUPPORT
NATIONWIDE
SHIPPING
Trace Elliot Transformer DI Pedal
When you need to convert between balanced and unbalanced signals to connect your gear, the Trace Elliot® Transformer DI does so with 1-to-1 audiophile quality. Equipped with a perfectly balanced proprietary transformer design, the Transformer DI solves the balanced/unbalanced conversion challenge with total transparency. Never lose your low B – full clarity down to 14Hz means nothing you play gets lost.
Features:
• General purpose audiophile quality 1:1 line level audio transformer interface.
• Transforms balanced to unbalanced line signals or unbalanced to balanced line signals.
• Perfectly balanced proprietary transformer design with ultra-high permeability Ni-Fe core.
• Frequency Response of 20Hz to 20kHz (-0.5dB) with no more than +/-1.0dB of variation from 14Hz to 80kHz.
• Total Harmonic Distortion is <0.015% from 70Hz to 80kHz.
• Total Harmonic Distortion is 0.5% at 20Hz.
• Electrical isolation of >500V between secondary and primary winding or windings.
• Insertion loss <1.0dB.
• Input levels up to +22.2dBu are acceptable.
• Ground lift with RF rejection circuitry.
• Excellent for low to mid impedance signal sources.
• Never lose your low B – full clarity down to 14Hz means nothing you play gets lost.
